Spiral Point Tap Plug Style for Steels - J3 / J4 / J8 SERIES
View TAP SELECTOR / CUTTING DATA

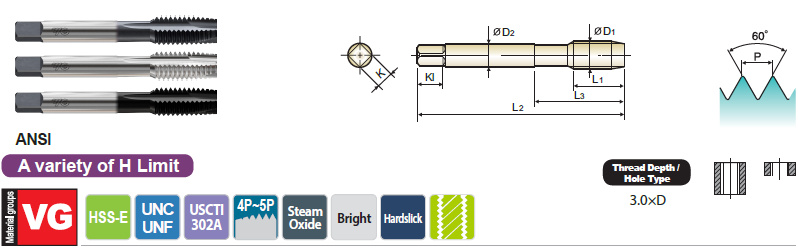

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Steam Oxide Bright Hardslick L2 L1 L3 D2 K Kl
#2 56UNC J3082 J4082 J8082 H2 1.752 0.256 0.433 0.141 0.110 0.190 2
#3 48UNC J3122 J4122 J8122 H2 1.811 0.295 0.492 0.141 0.110 0.190 2
#4 40UNC J3162 J4162 J8162 H2 1.874 0.335 0.563 0.141 0.110 0.190 2
#4 40UNC J3163 J4163 J8163 H3 1.874 0.335 0.563 0.141 0.110 0.190 2
#4 40UNC J3164 J4164 J8164 H4 1.874 0.335 0.563 0.141 0.110 0.190 2
#4 40UNC J3165 J4165 J8165 H5 1.874 0.335 0.563 0.141 0.110 0.190 2
#4 48UNF J3182 J4182 J8182 H2 1.874 0.335 0.563 0.141 0.110 0.190 2
#5 40UNC J3202 J4202 J8202 H2 1.937 0.374 0.626 0.141 0.110 0.190 3
#6 32UNC J3242 J4242 J8242 H2 2.000 0.413 0.689 0.141 0.110 0.190 3
#6 32UNC J3243 J4243 J8243 H3 2.000 0.413 0.689 0.141 0.110 0.190 3
#6 32UNC J3244 J4244 J8244 H4 2.000 0.413 0.689 0.141 0.110 0.190 3
#6 32UNC J3245 J4245 J8245 H5 2.000 0.413 0.689 0.141 0.110 0.190 3
#6 32UNC J3246 J4246 J8246 H6 2.000 0.413 0.689 0.141 0.110 0.190 3
#6 32UNC J3247 J4247 J8247 H7 2.000 0.413 0.689 0.141 0.110 0.190 3
#6 32UNC J324A J424A J824A H11 2.000 0.413 0.689 0.141 0.110 0.190 3
#6 40UNF J3262 J4262 J8262 H2 2.000 0.413 0.689 0.141 0.110 0.190 3
#8 32UNC J3282 J4282 J8282 H2 2.126 0.453 0.752 0.168 0.131 0.250 3
#8 32UNC J3283 J4283 J8283 H3 2.126 0.453 0.752 0.168 0.131 0.250 3
#8 32UNC J3284 J4284 J8284 H4 2.126 0.453 0.752 0.168 0.131 0.250 3
#8 32UNC J3285 J4285 J8285 H5 2.126 0.453 0.752 0.168 0.131 0.250 3
#8 32UNC J3286 J4286 J8286 H6 2.126 0.453 0.752 0.168 0.131 0.250 3
#8 32UNC J3287 J4287 J8287 H7 2.126 0.453 0.752 0.168 0.131 0.250 3
#8 32UNC J328A J428A J828A H11 2.126 0.453 0.752 0.168 0.131 0.250 3
#8 36UNC J3302 J4302 J8302 H2 2.126 0.453 0.752 0.168 0.131 0.250 3
#10 24UNC J3323 J4323 J8323 H3 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 24UNC J3325 J4325 J8325 H5 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 24UNC J332A J432A J832A H11 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 32UNF J3342 J4342 J8342 H2 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 32UNF J3343 J4343 J8343 H3 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 32UNF J3344 J4344 J8344 H4 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 32UNF J3345 J4345 J8345 H5 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 32UNF J3346 J4346 J8346 H6 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 32UNF J3347 J4347 J8347 H7 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 32UNF J334A J434A J834A H11 2.374 0.531 0.906 0.194 0.152 0.250 3
#12 24UNC J3363 J4363 J8363 H3 2.374 0.571 0.906 0.220 0.165 0.280 3
#12 28UNF J3383 J4383 J8383 H3 2.374 0.571 0.906 0.220 0.165 0.280 3
1/4 20UNC J3402 J4402 J8402 H2 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 20UNC J3403 J4403 J8403 H3 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 20UNC J3405 J4405 J8405 H5 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 20UNC J3407 J4407 J8407 H7 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 20UNC J340A J440A J840A H11 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF J3422 J4422 J8422 H2 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF J3423 J4423 J8423 H3 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF J3424 J4424 J8424 H4 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF J3425 J4425 J8425 H5 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF J3426 J4426 J8426 H6 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF J3427 J4427 J8427 H7 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF J342A J442A J842A H11 2.500 0.591 1.000 0.255 0.191 0.310 3
5/16 18UNC J3443 J4443 J8443 H3 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 18UNC J3445 J4445 J8445 H5 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 18UNC J3447 J4447 J8447 H7 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 18UNC J344A J444A J844A H11 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 24UNF J3462 J4462 J8462 H2 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 24UNF J3463 J4463 J8463 H3 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 24UNF J3464 J4464 J8464 H4 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 24UNF J3465 J4465 J8465 H5 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 24UNF J3466 J4466 J8466 H6 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 24UNF J3467 J4467 J8467 H7 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 24UNF J346A J446A J846A H11 2.720 0.669 1.126 0.318 0.238 0.380 3
3/8 16UNC J3483 J4483 J8483 H3 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 16UNC J3485 J4485 J8485 H5 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 16UNC J3487 J4487 J8487 H7 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 16UNC J348A J448A J848A H11 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF J3502 J4502 J8502 H2 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF J3503 J4503 J8503 H3 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF J3504 J4504 J8504 H4 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF J3505 J4505 J8505 H5 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF J3506 J4506 J8506 H6 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF J3507 J4507 J8507 H7 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF J350A J450A J850A H11 2.937 0.748 1.252 0.381 0.286 0.440 3
7/16 14UNC J3523 J4523 J8523 H3 3.157 0.866 1.437 0.323 0.242 0.410 3
7/16 14UNC J3525 J4525 J8525 H5 3.157 0.866 1.437 0.323 0.242 0.410 3
7/16 14UNC J3527 J4527 J8527 H7 3.157 0.866 1.437 0.323 0.242 0.410 3
7/16 14UNC J352A J452A J852A H11 3.157 0.866 1.437 0.323 0.242 0.410 3
7/16 20UNF J3543 J4543 J8543 H3 3.157 0.866 1.437 0.323 0.242 0.410 3
7/16 20UNF J3545 J4545 J8545 H5 3.157 0.866 1.437 0.323 0.242 0.410 3
7/16 20UNF J3547 J4547 J8547 H7 3.157 0.866 1.437 0.323 0.242 0.410 3
7/16 20UNF J354A J454A J854A H11 3.157 0.866 1.437 0.323 0.242 0.410 3
1/2 13UNC J3563 J4563 J8563 H3 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 13UNC J3565 J4565 J8565 H5 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 13UNC J3567 J4567 J8567 H7 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 13UNC J356A J456A J856A H11 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 20UNF J3582 J4582 J8582 H2 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 20UNF J3583 J4583 J8583 H3 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 20UNF J3585 J4585 J8585 H5 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 20UNF J3587 J4587 J8587 H7 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 20UNF J358A J458A J858A H11 3.374 0.984 1.657 0.367 0.275 0.440 3
9/16 12UNC J3605 J4605 J8605 H5 3.594 0.984 1.657 0.429 0.322 0.500 3
9/16 18UNF J3625 J4625 J8625 H5 3.594 0.984 1.657 0.429 0.322 0.500 3
5/8 11UNC J3643 J4643 J8643 H3 3.811 1.083 1.811 0.480 0.360 0.560 3
5/8 11UNC J3645 J4645 J8645 H5 3.811 1.083 1.811 0.480 0.360 0.560 3
5/8 18UNF J3663 J4663 J8663 H3 3.811 1.083 1.811 0.480 0.360 0.560 3
5/8 18UNF J3665 J4665 J8665 H5 3.811 1.083 1.811 0.480 0.360 0.560 3
5/8 18UNF J3667 J4667 J8667 H7 3.811 1.083 1.811 0.480 0.360 0.560 3
3/4 10UNC J3703 J4703 J8703 H3 4.252 1.201 2.000 0.590 0.442 0.690 3
3/4 10UNC J3705 J4705 J8705 H5 4.252 1.201 2.000 0.590 0.442 0.690 3
3/4 16UNF J3723 J4723 J8723 H3 4.252 1.201 2.000 0.590 0.442 0.690 3
3/4 16UNF J3725 J4725 J8725 H5 4.252 1.201 2.000 0.590 0.442 0.690 3
7/8 9UNC J3745 J4745 J8745 H5 4.689 1.339 2.220 0.697 0.523 0.750 3
7/8 14UNF J3764 J4764 J8764 H4 4.689 1.339 2.220 0.697 0.523 0.750 3
1 8UNC J3784 J4784 J8784 H4 5.126 1.496 2.500 0.800 0.600 0.810 3
1 12UNF J3804 J4804 J8804 H4 5.126 1.496 2.500 0.800 0.600 0.810 3
1-1/8 7UNC J3826 J4826 J8826 H6 5.437 1.535 2.563 0.896 0.672 0.880 4
1-1/8 8UN J3836 J4836 J8836 H6 5.437 1.535 2.563 0.896 0.672 0.880 4
1-1/8 12UNF J3845 J4845 J8845 H5 5.437 1.535 2.563 0.896 0.672 0.880 4
1-1/4 7UNC J3866 J4866 J8866 H6 5.752 1.535 2.563 1.021 0.766 1.000 4
1-1/4 8UN J3876 J4876 J8876 H6 5.752 1.535 2.563 1.021 0.766 1.000 4
1-1/4 12UNF J3885 J4885 J8885 H5 5.752 1.535 2.563 1.021 0.766 1.000 4
1-3/8 6UNC J3906 J4906 J8906 H6 6.063 1.791 3.000 1.108 0.831 1.060 4
1-3/8 8UN J3916 J4916 J8916 H6 6.063 1.791 3.000 1.108 0.831 1.060 4
1-3/8 12UNF J3925 J4925 J8925 H5 6.063 1.791 3.000 1.108 0.831 1.060 4
1-1/2 6UNC J3946 J4946 J8946 H6 6.374 1.791 3.000 1.233 0.925 1.130 4
1-1/2 8UN J3956 J4956 J8956 H6 6.374 1.791 3.000 1.233 0.925 1.130 4
1-1/2 12UNF J3965 J4965 J8965 H5 6.374 1.791 3.000 1.233 0.925 1.130 4
