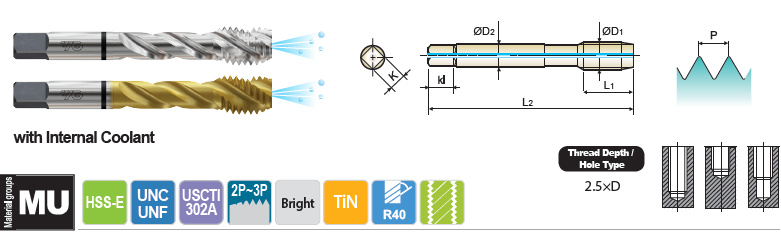

Spiral Flute Tap for Multi-Purpose - T6, T6-N SERIES

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bright TiN L2 L1 L3 D2 K Kl
1/4 20UNC T6405 T6405N H5 2.500 0.433 1.000 0.255 0.191 0.310 3
1/4 28UNF T6424 T6424N H4 2.500 0.354 1.000 0.255 0.191 0.310 3
5/16 18UNC T6445 T6445N H5 2.720 0.472 1.126 0.318 0.238 0.380 3
5/16 24UNF T6464 T6464N H4 2.720 0.394 1.126 0.318 0.238 0.380 3
3/8 16UNC T6485 T6485N H5 2.937 0.551 1.252 0.381 0.286 0.440 3
3/8 24UNF T6504 T6504N H4 2.937 0.394 1.252 0.381 0.286 0.440 3
7/16 14UNC T6525 T6525N H5 3.157 0.591 1.850 0.323 0.242 0.410 3
7/16 20UNF T6545 T6545N H5 3.157 0.472 1.850 0.323 0.242 0.410 3
1/2 13UNC T6565 T6565N H5 3.374 0.630 2.067 0.367 0.275 0.440 3
1/2 20UNF T6585 T6585N H5 3.374 0.472 2.067 0.367 0.275 0.440 3
9/16 12UNC T6605 T6605N H5 3.594 0.709 2.067 0.429 0.322 0.500 3
9/16 18UNF T6625 T6625N H5 3.594 0.512 2.067 0.429 0.322 0.500 3
5/8 11UNC T6645 T6645N H5 3.811 0.748 2.205 0.480 0.360 0.560 4
5/8 18UNF T6665 T6665N H5 3.811 0.512 2.205 0.480 0.360 0.560 4
3/4 10UNC T6705 T6705N H5 4.252 0.827 2.480 0.590 0.442 0.690 4
3/4 16UNF T6725 T6725N H5 4.252 0.591 2.480 0.590 0.442 0.690 4
7/8 9UNC T6746 T6746N H6 4.689 0.827 2.815 0.697 0.523 0.750 4
7/8 14UNF T6766 T6766N H6 4.689 0.709 2.815 0.697 0.523 0.750 4
1 8UNC T6786 T6786N H6 5.126 0.984 3.091 0.800 0.600 0.810 4
1 12UNF T6806 T6806N H6 5.126 0.709 3.091 0.800 0.600 0.810 4
