Rotary Tooling Home >

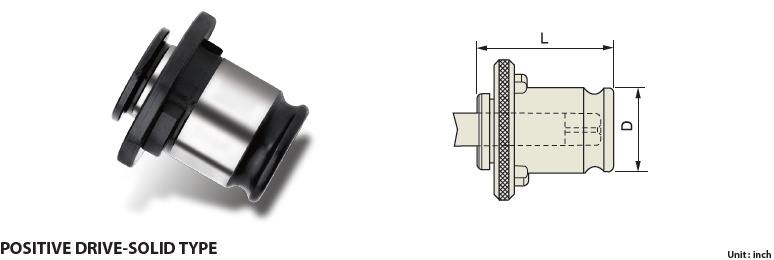

TAP ADAPTOR without SAFETY CLUTCH - QCT - INCH

EDP No. ADAPTOR SIZE TAP SIZE RANGE TAP SIZE TAP Dia. TAP SQUARE
QCT12001 QCT 12

D = 19mm/.748
L = 28.5mm/1.122		 0 - 9/16 # 0 - 6 0.141 0.110
QCT12002 # 8 0.168 0.131
QCT12003 # 10 0.194 0.152
QCT12004 # 12 0.220 0.165
QCT12005 1/4 0.255 0.191
QCT12006 5/16 0.318 0.238
QCT12007 3/8 0.381 0.286
QCT12008 7/16 0.323 0.242
QCT12009 1/2 0.367 0.275
QCT12010 9/16 0.429 0.322
QCT12011 1/8
PIPE		 1/8pss 0.3125 0.234
QCT12012 1/8pls 0.437 0.328
QCT24001 QCT 24

D = 31mm/1.220
L = 46mm/1.811		 5/16 - 7/8 5/16 0.318 0.238
QCT24002 3/8 0.381 0.286
QCT24003 7/16 0.323 0.242
QCT24004 1/2 0.367 0.275
QCT24005 9/16 0.429 0.322
QCT24006 5/8 0.480 0.360
QCT24007 11/16 0.542 0.406
QCT24008 3/4 0.590 0.421
QCT24009 13/16 0.652 0.489
QCT24010 7/8 0.697 0.523
QCT24011 1/4, 3/8, 1/2
PIPE		 1/4p 0.562 0.420
QCT24012 3/8p 0.700 0.531
QCT24013 1/2p 0.6875 0.515
QCT32001 QCT 32

D = 48mm/1.890
L = 69.5mm/2.736		 13/16 - 1 3/8 13/16 0.652 0.489
QCT32002 7/8 0.697 0.523
QCT32003 15/16 0.760 0.570
QCT32004 1 0.800 0.600
QCT32005 1 1/8 0.896 0.672
QCT32006 1 1/4 1.021 0.766
QCT32007 1 3/8 1.108 0.831
QCT32008 1/2, 3/4, 1
PIPE		 1/2p 0.6875 0.515
QCT32009 3/4p 0.906 0.679
QCT32010 1p 1.125 0.843
