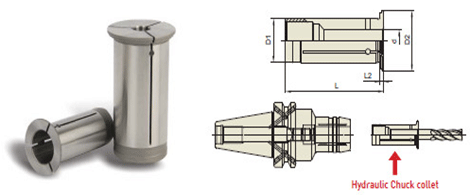

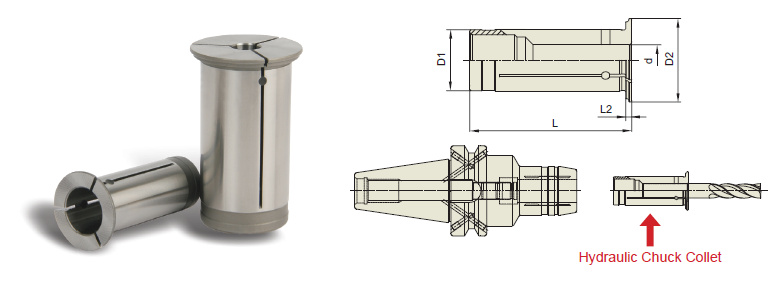

HYDRAULIC CHUCK COLLET (REDUCTION SLEEVE : OPEN TYPE) - HK - INCH/INCH

EDP No. TYPE d D1 D2 L L2
612108 HK1/2 1/8 0.125 0.500 0.748 1.850 0.079
612316 3/16 0.188 0.500 0.748 1.850 0.079
612104 1/4 0.250 0.500 0.748 1.850 0.079
612516 5/16 0.313 0.500 0.748 1.850 0.079
625108 HK3/4 1/8 0.125 0.750 1.063 2.067 0.079
625316 3/16 0.188 0.750 1.063 2.067 0.079
625104 1/4 0.250 0.750 1.063 2.067 0.079
625516 5/16 0.313 0.750 1.063 2.067 0.079
625308 3/8 0.375 0.750 1.063 2.067 0.079
625102 1/2 0.500 0.750 1.063 2.067 0.079
625508 5/8 0.625 0.750 1.063 2.067 0.079
626316 HK1 3/16 0.188 1.000 1.142 2.224 0.079
626104 1/4 0.250 1.000 1.142 2.224 0.079
626516 5/16 0.313 1.000 1.142 2.224 0.079
626308 3/8 0.375 1.000 1.142 2.224 0.079
626716 7/16 0.438 1.000 1.142 2.224 0.079
626102 1/2 0.500 1.000 1.142 2.224 0.079
626508 5/8 0.625 1.000 1.142 2.224 0.079
626304 3/4 0.750 1.000 1.142 2.224 0.079
632108 HK11/4 1/8 0.125 1.250 1.535 2.500 0.118
632316 3/16 0.188 1.250 1.535 2.500 0.118
632104 1/4 0.250 1.250 1.535 2.500 0.118
632516 5/16 0.313 1.250 1.535 2.500 0.118
632308 3/8 0.375 1.250 1.535 2.500 0.118
632102 1/2 0.500 1.250 1.535 2.500 0.118
632508 5/8 0.625 1.250 1.535 2.500 0.118
632304 3/4 0.750 1.250 1.535 2.500 0.118
632100 1 1.000 1.250 1.535 2.500 0.118
