Milling Home >

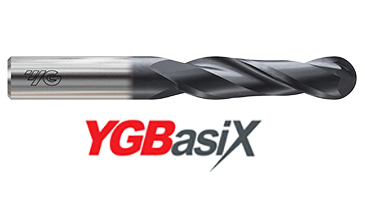

YGBasix ENDMILLS 2FL BALL NOSE LONG - G9I07/E5I07

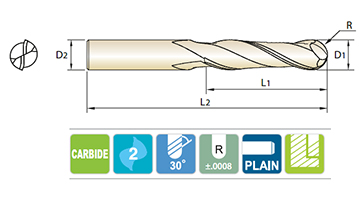

EDP No. Mill Diameter Shank Diameter Length of Cut Overall Length Number of Flutes
COATED UNCOATED D1 D2 L1 L2 Z
G9I07008N E5I07008 1/8 1/8 3/4 2_1/4 2
G9I07010N E5I07010 5/32 3/16 3/4 2_1/2 2
G9I07012N E5I07012 3/16 3/16 3/4 2_1/2 2
G9I07901N E5I07901 1/4 1/4 1_1/8 3" 2
G9I07020N E5I07020 5/16 5/16 1_1/8 3" 2
G9I07902N E5I07902 3/8 3/8 1_1/8 3" 2
G9I07028N E5I07028 7/16 7/16 2" 4" 2
G9I07032N E5I07032 1/2 1/2 2" 4" 2
G9I07040N E5I07040 5/8 5/8 2_1/4 5" 2
G9I07048N E5I07048 3/4 3/4 2_1/4 5" 2
G9I07064N E5I07064 1" 1" 2_1/4 5" 2
