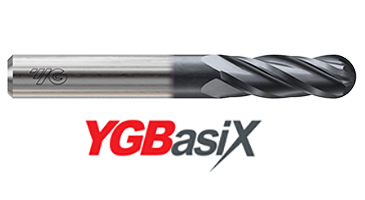

YGBasix ENDMILLS 4FL BALL NOSE LONG - G9I08/E5I08

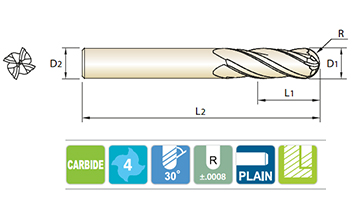

EDP No. Mill Diameter Shank Diameter Length of Cut Overall Length Number of Flutes
COATED UNCOATED D1 D2 L1 L2 Z
G9I08008N E5I08008 1/8 1/8 3/4 2_1/4 4
G9I08010N E5I08010 5/32 3/16 3/4 2_1/2 4
G9I08012N E5I08012 3/16 3/16 3/4 2_1/2 4
G9I08016N E5I08016 1/4 1/4 1_1/8 3" 4
G9I08020N E5I08020 5/16 5/16 1_1/8 3" 4
G9I08024N E5I08024 3/8 3/8 1_1/8 3" 4
G9I08028N E5I08028 7/16 7/16 2" 4" 4
G9I08032N E5I08032 1/2 1/2 1-1/2 4" 4
G9I08040N E5I08040 5/8 5/8 2_1/4 5" 4
G9I08901N E5I08901 1/2 1/2 2" 4" 4
G9I08048N E5I08048 3/4 3/4 2_1/4 5" 4
G9I08064N E5I08064 1" 1" 2_1/4 5" 4
