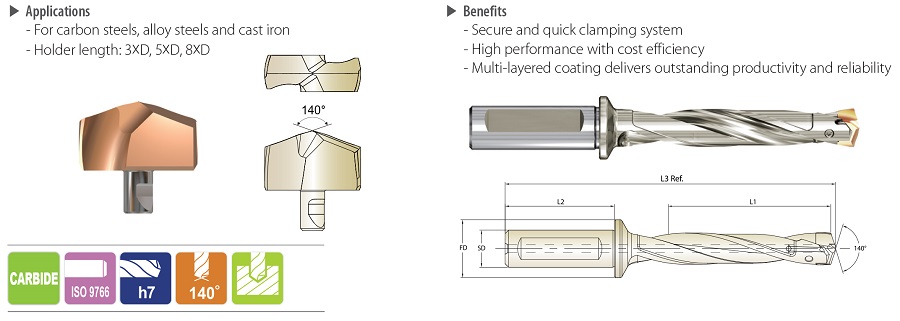

I-ONE DRILLS INSERTS & HOLDERS DIA 12.00 to 13.99 - Y121H, Y122Z

Series range Insert EDP Insert O.D.
(h7)		 Holder EDP Shank Dia. Shank Length Flange Dia. Drilling Depth Overall Length Screw No.
(mm) H-Coating Z-Coating dec. frac. mm L2 FD L1 L3 Ref.
S12
Ø12.00
to
Ø13.99 		Y121H1200 Y122Z1200 .4724 12.00 ZD12003063
ZD12005063
ZD12008063 		5/8 1-7/8 29/32 3D
5D
8D		 1-15/32
2-29/64
3-15/16		 4-5/16
5-8/32
6-43/64		 TX1213P5
Y121H1210 Y122Z1210 .4764 12.10
Y121H1220 Y122Z1220 .4803 12.20
Y121H1230 Y122Z1230 .4844 31/64 12.30
Y121H1240 Y122Z1240 .4882 12.40
Y121H1250 Y122Z1250 .4921 12.50 ZD12503063
ZD12505063
ZD12508063 		5/8 1-7/8 29/32 3D
5D
8D		 1-17/32
2-9/16
4-3/32		 4-11/32
6-33/64
6-13/16
Y121H1260 Y122Z1260 .4961 12.60
Y121H1270 Y122Z1270 .5000 1/2 12.70
Y121H1280 Y122Z1280 .5039 12.80
Y121H1290 Y122Z1290 .5079 12.90
Y121H1300 Y122Z1300 .5118 13.00 ZD13003063
ZD13005063
ZD13008063 		5/8 1-7/8 29/32 3D
5D
8D		 1-19/32
2-21/32
4-1/4		 4-27/64
5-29/64
6-63/64
Y121H1310 Y122Z1310 .5156 33/64 13.10
Y121H1320 Y122Z1320 .5197 13.20
Y121H1330 Y122Z1330 .5236 13.30
Y121H1340 Y122Z1340 .5276 13.40
Y121H1349 Y122Z1349 .5313 17/32 13.49
Y121H1350 Y122Z1350 .5315 13.50 ZD13503063
ZD13505063
ZD13508063 		5/8 1-7/8 29/32 3D
5D
8D		 1-21/32
2-3/4
4-13/32		 4-15/32
5-17/32
7-1/8
Y121H1360 Y122Z1360 .5354 13.60
Y121H1370 Y122Z1370 .5394 13.70
Y121H1380 Y122Z1380 .5433 13.80
Y121H1389 Y122Z1389 .5469 35/64 13.89
Y121H1390 Y122Z1390 .5472 13.90
