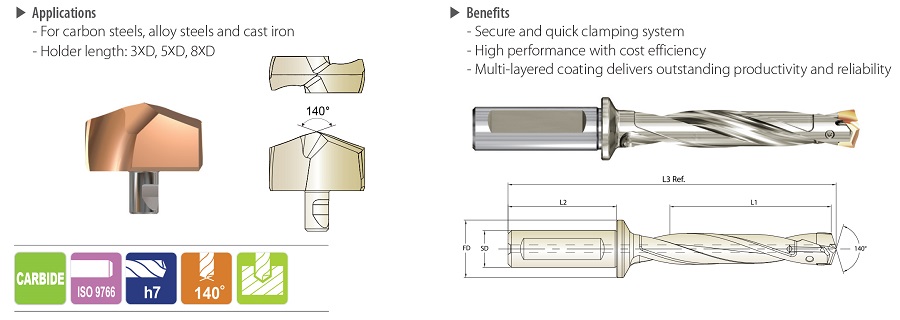

I-ONE DRILLS INSERTS & HOLDERS DIA 16.00 to 17.99 - Y161H, Y162Z

Series range Insert EDP Insert O.D.
(h7)		 Holder EDP Shank Dia. Shank Length Flange Dia. Drilling Depth Overall Length Screw No.
(mm) H-Coating Z-Coating dec. frac. mm L2 FD L1 L3 Ref.
S16
Ø16.00
to
Ø17.99		 Y161H1600 Y162Z1600 .6299 16.00 ZD16003075
ZD16005075
ZD16008075 		3/4 2 1 3D
5D
8D		 2-1/64
3-11/32
5-23/64		 5-1/32
6-21/64
8-9/32		 TX1617P7
Y161H1609 Y162Z1609 .6335 16.09
Y161H1610 Y162Z1610 .6339 16.10
Y161H1620 Y162Z1620 .6378 16.20
Y161H1627 Y162Z1627 .6406 41/64 16.27
Y161H1630 Y162Z1630 .6417 16.30
Y161H1640 Y162Z1640 .6457 16.40
Y161H1650 Y162Z1650 .6496 16.50
Y161H1660 Y162Z1660 .6535 16.60
Y161H1667 Y162Z1667 .6563 21/32 16.67
Y161H1670 Y162Z1670 .6575 16.70
Y161H1680 Y162Z1680 .6614 16.80
Y161H1690 Y162Z1690 .6654 16.90
Y161H1700 Y162Z1700 .6693 17.00 ZD17003075
ZD17005075
ZD17008075 		3/4 2 1 3D
5D
8D		 2-1/8
3-35/64
5-43/64		 5-5/32
6-17/32
8-19/32		 TX1718P7
Y161H1707 Y162Z1707 .6719 43/64 17.07
Y161H1710 Y162Z1710 .6732 17.10
Y161H1720 Y162Z1720 .6772 17.20
Y161H1730 Y162Z1730 .6811 17.30
Y161H1740 Y162Z1740 .6850 17.40
Y161H1746 Y162Z1746 .6875 11/16 17.46
Y161H1750 Y162Z1750 .6890 17.50
Y161H1760 Y162Z1760 .6929 17.60
Y161H1770 Y162Z1770 .6969 17.70
Y161H1780 Y162Z1780 .7008 17.80
Y161H1786 Y162Z1786 .7031 45/64 17.86
Y161H1790 Y162Z1790 .7047 17.90
