YG-1: BEST VALUE IN THE WORLD OF CUTTING TOOLS

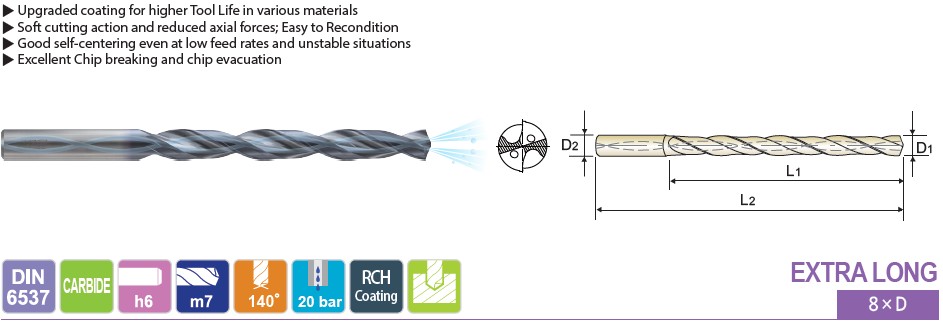

EDP No.	Drill Diameter			Shank Diameter	Flute Length	Overall Length
RCH-Coating	Metric D1	Fractional D1	Decimal D1	D2	L1	L2
DTX421030	3.0		0.1181	6	34	72
DTX421031	3.1		0.1220	6	34	72
DTX421008F	3.175	1/8	0.1250	6	34	72
DTX421032	3.2		0.1260	6	34	72
DTX421033	3.3		0.1299	6	34	72
DTX421034	3.4		0.1339	6	34	72
DTX421029G	3.450	#29	0.1360	6	34	72
DTX421035	3.5		0.1378	6	34	72
DTX421009F	3.572	9/64	0.1406	6	34	72
DTX421036	3.6		0.1417	6	34	72
DTX421037	3.7		0.1457	6	34	72
DTX421038	3.8		0.1496	6	43	81
DTX421039	3.9		0.1535	6	43	81
DTX421010F	3.969	5/32	0.1563	6	43	81
DTX421040	4.0		0.1575	6	43	81
DTX421021G	4.040	#21	0.1590	6	43	81
DTX421041	4.1		0.1614	6	43	81
DTX421042	4.2		0.1654	6	43	81
DTX421043	4.3		0.1693	6	43	81
DTX421011F	4.366	11/64	0.1719	6	43	81
DTX421044	4.4		0.1732	6	43	81
DTX421045	4.5		0.1772	6	43	81
DTX421046	4.6		0.1811	6	43	81
DTX421047	4.7		0.1850	6	43	81
DTX421012F	4.763	3/16	0.1875	6	57	95
DTX421048	4.8		0.1890	6	57	95
DTX421049	4.9		0.1929	6	57	95
DTX421050	5.0		0.1969	6	57	95
DTX421051	5.1		0.2008	6	57	95
DTX421013F	5.159	13/64	0.2031	6	57	95
DTX421052	5.2		0.2047	6	57	95
DTX421053	5.3		0.2087	6	57	95
DTX421054	5.4		0.2126	6	57	95
DTX421055	5.5		0.2165	6	57	95
DTX421014F	5.556	7/32	0.2188	6	57	95
DTX421056	5.6		0.2205	6	57	95
DTX421057	5.7		0.2244	6	57	95
DTX421058	5.8		0.2283	6	57	95
DTX421059	5.9		0.2323	6	57	95
DTX421015F	5.953	15/64	0.2344	6	57	95
DTX421060	6.0		0.2362	6	57	95
DTX421061	6.1		0.2402	8	76	114
DTX421062	6.2		0.2441	8	76	114
DTX421063	6.3		0.2480	8	76	114
DTX421016F	6.350	1/4	0.2500	8	76	114
DTX421064	6.4		0.2520	8	76	114
DTX421065	6.5		0.2559	8	76	114
DTX421006L	6.528	F	0.2570	8	76	114
DTX421066	6.6		0.2598	8	76	114
DTX421067	6.7		0.2638	8	76	114
DTX421017F	6.747	17/64	0.2656	8	76	114
DTX421068	6.8		0.2677	8	76	114
DTX421069	6.9		0.2717	8	76	114
DTX421009L	6.909	I	0.2720	8	76	114
DTX421070	7.0		0.2756	8	76	114
DTX421071	7.1		0.2795	8	76	114
DTX421018F	7.144	9/32	0.2813	8	76	114
DTX421072	7.2		0.2835	8	76	114
DTX421073	7.3		0.2874	8	76	114
DTX421074	7.4		0.2913	8	76	114
DTX421075	7.5		0.2953	8	76	114
DTX421019F	7.541	19/64	0.2969	8	76	114
DTX421076	7.6		0.2992	8	76	114
DTX421077	7.7		0.3031	8	76	114
DTX421078	7.8		0.3071	8	76	114
DTX421079	7.9		0.3110	8	76	114
DTX421020F	7.938	5/16	0.3125	8	76	114
DTX421080	8.0		0.3150	8	76	114
DTX421081	8.1		0.3189	10	95	142
DTX421082	8.2		0.3228	10	95	142
DTX421083	8.3		0.3268	10	95	142
DTX421021F	8.334	21/64	0.3281	10	95	142
DTX421084	8.4		0.3307	10	95	142
DTX421017L	8.430	Q	0.3320	10	95	142
DTX421085	8.5		0.3346	10	95	142
DTX421086	8.6		0.3386	10	95	142
DTX421087	8.7		0.3425	10	95	142
DTX421022F	8.731	11/32	0.3438	10	95	142
DTX421088	8.8		0.3465	10	95	142
DTX421089	8.9		0.3504	10	95	142
DTX421090	9.0		0.3543	10	95	142
DTX421091	9.1		0.3583	10	95	142
DTX421023F	9.128	23/64	0.3594	10	95	142
DTX421092	9.2		0.3622	10	95	142
DTX421093	9.3		0.3661	10	95	142
DTX421021L	9.350	U	0.3680	10	95	142
DTX421094	9.4		0.3701	10	95	142
DTX421095	9.5		0.3740	10	95	142
DTX421024F	9.525	3/8	0.3750	10	95	142
DTX421096	9.6		0.3780	10	95	142
DTX421097	9.7		0.3819	10	95	142
DTX421098	9.8		0.3858	10	95	142
DTX421099	9.9		0.3898	10	95	142
DTX421025F	9.922	25/64	0.3906	10	95	142
DTX421100	10.0		0.3937	10	95	142
DTX421101	10.1		0.3976	12	114	162
DTX421102	10.2		0.4016	12	114	162
DTX421103	10.3		0.4055	12	114	162
DTX421026F	10.319	13/32	0.4063	12	114	162
DTX421104	10.4		0.4094	12	114	162
DTX421105	10.5		0.4134	12	114	162
DTX421106	10.6		0.4173	12	114	162
DTX421107	10.7		0.4212	12	114	162
DTX421027F	10.716	27/64	0.4219	12	114	162
DTX421108	10.8		0.4252	12	114	162
DTX421109	10.9		0.4291	12	114	162
DTX421110	11.0		0.4330	12	114	162
DTX421111	11.1		0.4370	12	114	162
DTX421028F	11.113	7/16	0.4375	12	114	162
DTX421112	11.2		0.4409	12	114	162
DTX421113	11.3		0.4448	12	114	162
DTX421114	11.4		0.4488	12	114	162
DTX421115	11.5		0.4527	12	114	162
DTX421029F	11.509	29/64	0.4531	12	114	162
DTX421116	11.6		0.4566	12	114	162
DTX421117	11.7		0.4606	12	114	162
DTX421118	11.8		0.4645	12	114	162
DTX421119	11.9		0.4685	12	114	162
DTX421030F	11.906	15/32	0.4688	12	114	162
DTX421120	12.0		0.4724	12	114	162
DTX421121	12.1		0.4764	14	133	178
DTX421122	12.2		0.4803	14	133	178
DTX421123	12.3		0.4843	14	133	178
DTX421031F	12.303	31/64	0.4844	14	133	178
DTX421124	12.4		0.4882	14	133	178
DTX421125	12.5		0.4921	14	133	178
DTX421126	12.6		0.4961	14	133	178
DTX421032F	12.7	1/2	0.5000	14	133	178
DTX421128	12.8		0.5039	14	133	178
DTX421129	12.9		0.5079	14	133	178
DTX421130	13.0		0.5118	14	133	178
DTX421033F	13.097	33/64	0.5156	14	133	178
DTX421131	13.1		0.5157	14	133	178
DTX421132	13.2		0.5197	14	133	178
DTX421133	13.3		0.5236	14	133	178
DTX421134	13.4		0.5276	14	133	178
DTX421135	13.5		0.5314	14	133	178
DTX421136	13.6		0.5354	14	133	178
DTX421137	13.7		0.5394	14	133	178
DTX421138	13.8		0.5433	14	133	178
DTX421139	13.9		0.5472	14	133	178
DTX421140	14.0		0.5512	14	133	178
DTX421141	14.1		0.5551	16	152	203
DTX421142	14.2		0.5591	16	152	203
DTX421036F	14.288	9/16	0.5625	16	152	203
DTX421143	14.3		0.5630	16	152	203
DTX421144	14.4		0.5669	16	152	203
DTX421145	14.5		0.5709	16	152	203
DTX421146	14.6		0.5748	16	152	203
DTX421147	14.7		0.5787	16	152	203
DTX421148	14.8		0.5827	16	152	203
DTX421149	14.9		0.5866	16	152	203
DTX421150	15.0		0.5905	16	152	203
DTX421151	15.1		0.5945	16	152	203
DTX421152	15.2		0.5984	16	152	203
DTX421153	15.3		0.6024	16	152	203
DTX421154	15.4		0.6063	16	152	203
DTX421155	15.5		0.6102	16	152	203
DTX421156	15.6		0.6142	16	152	203
DTX421157	15.7		0.6181	16	152	203
DTX421158	15.8		0.6220	16	152	203
DTX421040F	15.875	5/8	0.6250	16	152	203
DTX421159	15.9		0.6260	16	152	203
DTX421160	16.0		0.6299	16	152	203
DTX421161	16.1		0.6339	18	171	222
DTX421162	16.2		0.6378	18	171	222
DTX421163	16.3		0.6417	18	171	222
DTX421164	16.4		0.6457	18	171	222
DTX421165	16.5		0.6496	18	171	222
DTX421166	16.6		0.6535	18	171	222
DTX421167	16.7		0.6575	18	171	222
DTX421168	16.8		0.6614	18	171	222
DTX421169	16.9		0.6654	18	171	222
DTX421170	17.0		0.6693	18	171	222
DTX421171	17.1		0.6732	18	171	222
DTX421172	17.2		0.6772	18	171	222
DTX421173	17.3		0.6811	18	171	222
DTX421174	17.4		0.6850	18	171	222
DTX421175	17.5		0.6890	18	171	222
DTX421176	17.6		0.6929	18	171	222
DTX421177	17.7		0.6968	18	171	222
DTX421178	17.8		0.7008	18	171	222
DTX421179	17.9		0.7047	18	171	222
DTX421180	18.0		0.7087	18	171	222
DTX421181	18.1		0.7126	20	190	243
DTX421182	18.2		0.7165	20	190	243
DTX421183	18.3		0.7205	20	190	243
DTX421184	18.4		0.7244	20	190	243
DTX421185	18.5		0.7283	20	190	243
DTX421186	18.6		0.7323	20	190	243
DTX421187	18.7		0.7362	20	190	243
DTX421188	18.8		0.7402	20	190	243
DTX421189	18.9		0.7441	20	190	243
DTX421190	19.0		0.7480	20	190	243
DTX421048F	19.050	3/4	0.7500	20	190	243
DTX421191	19.1		0.7520	20	190	243
DTX421192	19.2		0.7559	20	190	243
DTX421193	19.3		0.7598	20	190	243
DTX421194	19.4		0.7638	20	190	243
DTX421195	19.5		0.7677	20	190	243
DTX421196	19.6		0.7717	20	190	243
DTX421197	19.7		0.7756	20	190	243
DTX421198	19.8		0.7795	20	190	243
DTX421199	19.9		0.7835	20	190	243
DTX421200	20.0		0.7874	20	190	243
