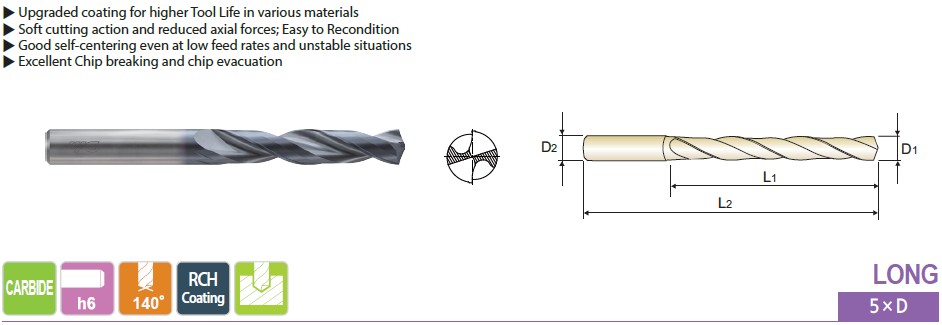

DREAM DRILL X without COOLANT HOLES DTX722 (5XD) INCH

EDP No.	Drill Diameter		Shank Diameter	Flute Length	Overall Length
RCH-Coating	Fractional D1	Decimal D1	D2	L1	L2
DTX722013	13/64	0.2031	1/4	1-3/4	3-15/16
DTX722014	7/32	0.2188	1/4	1-57/64	3-15/16
DTX722015	15/64	0.2344	1/4	1-57/64	3-15/16
DTX722016	1/4	0.2500	1/4	2-3/64	4-19/64
DTX722206	F	0.2570	5/16	2-13/64	4-19/64
DTX722017	17/64	0.2656	5/16	2-13/64	4-19/64
DTX722209	I	0.2720	5/16	2-13/64	4-19/64
DTX722018	9/32	0.2812	5/16	2-23/64	4-41/64
DTX722019	19/64	0.2969	5/16	2-33/64	4-41/64
DTX722020	5/16	0.3125	5/16	2-33/64	4-41/64
DTX722021	21/64	0.3281	3/8	2-43/64	5
DTX722217	Q	0.3320	3/8	2-43/64	5
DTX722022	11/32	0.3438	3/8	2-27/32	5
DTX722023	23/64	0.3594	3/8	3	5-23/64
DTX722221	U	0.3680	3/8	3	5-23/64
DTX722024	3/8	0.3750	3/8	3-5/32	5-23/64
DTX722025	25/64	0.3906	7/16	3-5/32	5-23/64
DTX722026	13/32	0.4062	7/16	3-5/16	5-7/8
DTX722027	27/64	0.4219	7/16	3-15/32	5-7/8
DTX722028	7/16	0.4375	7/16	3-5/8	6-7/32
DTX722029	29/64	0.4531	1/2	3-25/32	6-7/32
DTX722030	15/32	0.4688	1/2	3-25/32	6-7/32
DTX722031	31/64	0.4844	1/2	3-15/16	6-37/64
DTX722032	1/2	0.5000	1/2	4-3/32	6-37/64
