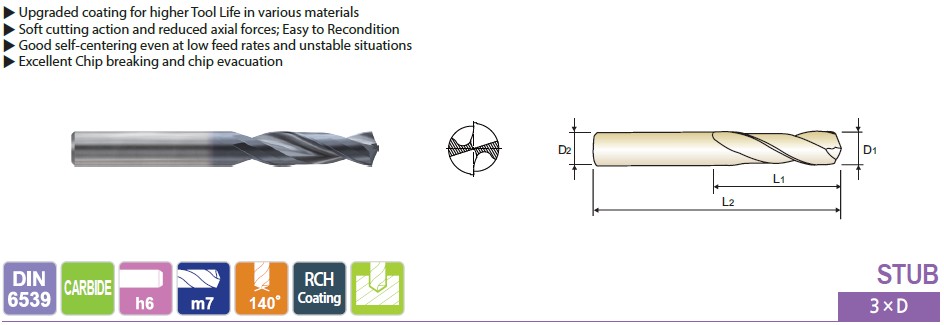

DREAM DRILL X without COOLANT HOLES DTX404 (3XD) METRIC

EDP No.	Drill Diameter		Flute Length	Overall Length
RCH-Coating	Metricl D1 = D2	Inch D1 = D2	L1	L2
DTX404030	3.0	0.1181	16	46
DTX404031	3.1	0.1220	18	49
DTX404032	3.2	0.1260	18	49
DTX404033	3.3	0.1299	18	49
DTX404034	3.4	0.1339	20	52
DTX404035	3.5	0.1378	20	52
DTX404036	3.6	0.1417	20	52
DTX404037	3.7	0.1457	20	52
DTX404038	3.8	0.1496	22	55
DTX404039	3.9	0.1535	22	55
DTX404040	4.0	0.1575	22	55
DTX404041	4.1	0.1614	22	55
DTX404042	4.2	0.1654	22	55
DTX404043	4.3	0.1693	24	58
DTX404044	4.4	0.1732	24	58
DTX404045	4.5	0.1772	24	58
DTX404046	4.6	0.1811	24	58
DTX404047	4.7	0.1850	24	58
DTX404048	4.8	0.1890	26	62
DTX404049	4.9	0.1929	26	62
DTX404050	5.0	0.1969	26	62
DTX404051	5.1	0.2008	26	62
DTX404052	5.2	0.2047	26	62
DTX404053	5.3	0.2087	26	62
DTX404054	5.4	0.2126	28	66
DTX404055	5.5	0.2165	28	66
DTX404056	5.6	0.2205	28	66
DTX404057	5.7	0.2244	28	66
DTX404058	5.8	0.2283	28	66
DTX404059	5.9	0.2323	28	66
DTX404060	6.0	0.2362	28	66
DTX404061	6.1	0.2402	31	70
DTX404062	6.2	0.2441	31	70
DTX404063	6.3	0.2480	31	70
DTX404064	6.4	0.2520	31	70
DTX404065	6.5	0.2559	31	70
DTX404066	6.6	0.2598	31	70
DTX404067	6.7	0.2638	31	70
DTX404068	6.8	0.2677	34	74
DTX404069	6.9	0.2717	34	74
DTX404070	7.0	0.2756	34	74
DTX404071	7.1	0.2795	34	74
DTX404072	7.2	0.2835	34	74
DTX404073	7.3	0.2874	34	74
DTX404074	7.4	0.2913	34	74
DTX404075	7.5	0.2953	34	74
DTX404076	7.6	0.2992	37	79
DTX404077	7.7	0.3031	37	79
DTX404078	7.8	0.3071	37	79
DTX404079	7.9	0.3110	37	79
DTX404080	8.0	0.3150	37	79
DTX404081	8.1	0.3189	37	79
DTX404082	8.2	0.3228	37	79
DTX404083	8.3	0.3268	37	79
DTX404084	8.4	0.3307	37	79
DTX404085	8.5	0.3346	37	79
DTX404086	8.6	0.3386	40	84
DTX404087	8.7	0.3425	40	84
DTX404088	8.8	0.3465	40	84
DTX404089	8.9	0.3504	40	84
DTX404090	9.0	0.3543	40	84
DTX404091	9.1	0.3583	40	84
DTX404092	9.2	0.3622	40	84
DTX404093	9.3	0.3661	40	84
DTX404094	9.4	0.3701	40	84
DTX404095	9.5	0.3740	40	84
DTX404096	9.6	0.3780	43	89
DTX404097	9.7	0.3819	43	89
DTX404098	9.8	0.3858	43	89
DTX404099	9.9	0.3898	43	89
DTX404100	10.0	0.3937	43	89
DTX404102	10.2	0.4016	43	89
DTX404105	10.5	0.4134	43	89
DTX404110	11.0	0.4331	47	95
DTX404115	11.5	0.4528	47	95
DTX404120	12.0	0.4724	51	102
DTX404130	13.0	0.5118	51	102
DTX404135	13.5	0.5314	54	107
DTX404140	14.0	0.5512	54	107
DTX404145	14.5	0.5708	56	111
DTX404150	15.0	0.5905	56	111
DTX404155	15.5	0.6102	58	115
DTX404160	16.0	0.6299	58	115
DTX404165	16.5	0.6495	60	119
DTX404170	17.0	0.6692	60	119
DTX404175	17.5	0.6889	62	123
DTX404180	18.0	0.7087	62	123
DTX404185	18.5	0.7283	64	127
DTX404190	19.0	0.7480	64	127
DTX404195	19.5	0.7676	66	131
DTX404200	20.0	0.7874	66	131
