YG-1: BEST VALUE IN THE WORLD OF CUTTING TOOLS

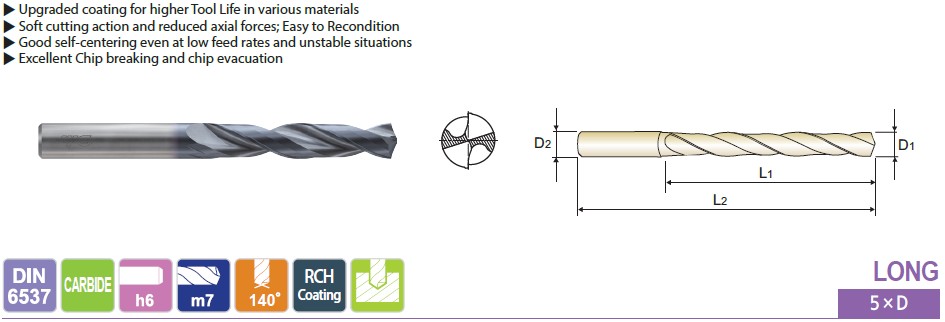

EDP No.	Drill Diameter			Shank Diameter	Flute Length	Overall Length
RCH-Coating	Metric D1	Fractional D1	Decimal D1	D2	L1	L2
DTX424010	1.0		0.0394	3	8	55
DTX424011	1.1		0.0433	3	12	55
DTX424012	1.2		0.0472	3	12	55
DTX424013	1.3		0.0512	3	12	55
DTX424014	1.4		0.0551	3	12	55
DTX424015	1.5		0.0591	3	16	55
DTX424004F	1.588	1/16	0.0625	3	16	55
DTX424016	1.6		0.0630	3	16	55
DTX424017	1.7		0.0669	3	16	55
DTX424018	1.8		0.0709	3	16	55
DTX424019	1.9		0.0748	3	16	55
DTX424005F	1.984	5/64	0.0781	3	16	55
DTX424020	2.0		0.0787	4	21	57
DTX424021	2.1		0.0827	4	21	57
DTX424022	2.2		0.0866	4	21	57
DTX424023	2.3		0.0906	4	21	57
DTX424006F	2.381	3/32	0.0938	4	21	57
DTX424024	2.4		0.0945	4	21	57
DTX424025	2.5		0.0984	4	21	57
DTX424026	2.6		0.1024	4	21	57
DTX424027	2.7		0.1063	4	21	57
DTX424007F	2.778	7/64	0.1094	4	21	57
DTX424028	2.8		0.1102	4	21	57
DTX424029	2.9		0.1142	4	21	57
DTX424030	3.0		0.1181	6	28	66
DTX424031	3.1		0.1220	6	28	66
DTX424008F	3.175	1/8	0.1250	6	28	66
DTX424032	3.2		0.1260	6	28	66
DTX424033	3.3		0.1299	6	28	66
DTX424034	3.4		0.1339	6	28	66
DTX424035	3.5		0.1378	6	28	66
DTX424009F	3.572	9/64	0.1406	6	28	66
DTX424036	3.6		0.1417	6	28	66
DTX424037	3.7		0.1457	6	28	66
DTX424038	3.8		0.1496	6	36	74
DTX424039	3.9		0.1535	6	36	74
DTX424010F	3.969	5/32	0.1563	6	36	74
DTX424040	4.0		0.1575	6	36	74
DTX424041	4.1		0.1614	6	36	74
DTX424042	4.2		0.1654	6	36	74
DTX424043	4.3		0.1693	6	36	74
DTX424011F	4.366	11/64	0.1719	6	36	74
DTX424044	4.4		0.1732	6	36	74
DTX424045	4.5		0.1772	6	36	74
DTX424046	4.6		0.1811	6	36	74
DTX424047	4.7		0.1850	6	36	74
DTX424012F	4.763	3/16	0.1875	6	36	74
DTX424048	4.8		0.1890	6	44	82
DTX424049	4.9		0.1929	6	44	82
DTX424050	5.0		0.1969	6	44	82
DTX424051	5.1		0.2008	6	44	82
DTX424013F	5.159	13/64	0.2031	6	44	82
DTX424052	5.2		0.2047	6	44	82
DTX424053	5.3		0.2087	6	44	82
DTX424054	5.4		0.2126	6	44	82
DTX424055	5.5		0.2165	6	44	82
DTX424014F	5.556	7/32	0.2188	6	44	82
DTX424056	5.6		0.2205	6	44	82
DTX424057	5.7		0.2244	6	44	82
DTX424058	5.8		0.2283	6	44	82
DTX424059	5.9		0.2323	6	44	82
DTX424015F	5.953	15/64	0.2344	6	44	82
DTX424060	6.0		0.2362	6	44	82
DTX424061	6.1		0.2402	8	53	91
DTX424062	6.2		0.2441	8	53	91
DTX424063	6.3		0.2480	8	53	91
DTX424016F	6.350	1/4	0.2500	8	53	91
DTX424064	6.4		0.2520	8	53	91
DTX424065	6.5		0.2559	8	53	91
DTX424006L	6.528	F	0.2570	8	53	91
DTX424066	6.6		0.2598	8	53	91
DTX424067	6.7		0.2638	8	53	91
DTX424017F	6.747	17/64	0.2656	8	53	91
DTX424068	6.8		0.2677	8	53	91
DTX424069	6.9		0.2717	8	53	91
DTX424009L	6.909	I	0.2720	8	53	91
DTX424070	7.0		0.2756	8	53	91
DTX424071	7.1		0.2795	8	53	91
DTX424018F	7.144	9/32	0.2812	8	53	91
DTX424072	7.2		0.2835	8	53	91
DTX424073	7.3		0.2874	8	53	91
DTX424074	7.4		0.2913	8	53	91
DTX424075	7.5		0.2953	8	53	91
DTX424019F	7.541	19/64	0.2969	8	53	91
DTX424076	7.6		0.2992	8	53	91
DTX424077	7.7		0.3031	8	53	91
DTX424078	7.8		0.3071	8	53	91
DTX424079	7.9		0.3110	8	53	91
DTX424020F	7.938	5/16	0.3125	8	53	91
DTX424080	8.0		0.3150	8	53	91
DTX424081	8.1		0.3189	10	61	103
DTX424082	8.2		0.3228	10	61	103
DTX424083	8.3		0.3268	10	61	103
DTX424021F	8.334	21/64	0.3281	10	61	103
DTX424084	8.4		0.3307	10	61	103
DTX424017L	8.433	Q	0.3320	10	61	103
DTX424085	8.5		0.3346	10	61	103
DTX424086	8.6		0.3386	10	61	103
DTX424087	8.7		0.3425	10	61	103
DTX424022F	8.731	11/32	0.3438	10	61	103
DTX424088	8.8		0.3465	10	61	103
DTX424089	8.9		0.3504	10	61	103
DTX424090	9.0		0.3543	10	61	103
DTX424091	9.1		0.3583	10	61	103
DTX424023F	9.128	23/64	0.3594	10	61	103
DTX424092	9.2		0.3622	10	61	103
DTX424093	9.3		0.3661	10	61	103
DTX424021L	9.347	U	0.3680	10	61	103
DTX424094	9.4		0.3701	10	61	103
DTX424095	9.5		0.3740	10	61	103
DTX424024F	9.525	3/8	0.3750	10	61	103
DTX424096	9.6		0.3780	10	61	103
DTX424097	9.7		0.3819	10	61	103
DTX424098	9.8		0.3858	10	61	103
DTX424099	9.9		0.3898	10	61	103
DTX424025F	9.922	25/64	0.3906	10	61	103
DTX424100	10.0		0.3937	10	61	103
DTX424101	10.1		0.3976	12	71	118
DTX424102	10.2		0.4016	12	71	118
DTX424103	10.3		0.4055	12	71	118
DTX424026F	10.319	13/32	0.4062	12	71	118
DTX424104	10.4		0.4094	12	71	118
DTX424105	10.5		0.4134	12	71	118
DTX424106	10.6		0.4173	12	71	118
DTX424107	10.7		0.4213	12	71	118
DTX424027F	10.716	27/64	0.4219	12	71	118
DTX424108	10.8		0.4252	12	71	118
DTX424109	10.9		0.4291	12	71	118
DTX424110	11.0		0.4331	12	71	118
DTX424111	11.1		0.4370	12	71	118
DTX424028F	11.113	7/16	0.4375	12	71	118
DTX424112	11.2		0.4409	12	71	118
DTX424113	11.3		0.4449	12	71	118
DTX424114	11.4		0.4488	12	71	118
DTX424115	11.5		0.4528	12	71	118
DTX424029F	11.509	29/64	0.4531	12	71	118
DTX424116	11.6		0.4567	12	71	118
DTX424117	11.7		0.4606	12	71	118
DTX424118	11.8		0.4646	12	71	118
DTX424119	11.9		0.4685	12	71	118
DTX424030F	11.906	15/32	0.4688	12	71	118
DTX424120	12.0		0.4724	12	71	118
DTX424121	12.1		0.4764	14	77	124
DTX424122	12.2		0.4803	14	77	124
DTX424123	12.3		0.4843	14	77	124
DTX424031F	12.303	31/64	0.4844	14	77	124
DTX424124	12.4		0.4882	14	77	124
DTX424125	12.5		0.4921	14	77	124
DTX424126	12.6		0.4961	14	77	124
DTX424032F	12.7	1/2	0.5000	14	77	124
DTX424128	12.8		0.5039	14	77	124
DTX424129	12.9		0.5079	14	77	124
DTX424130	13.0		0.5118	14	77	124
DTX424131	13.1		0.5157	14	77	124
DTX424132	13.2		0.5197	14	77	124
DTX424133	13.3		0.5236	14	77	124
DTX424134	13.4		0.5276	14	77	124
DTX424135	13.5		0.5315	14	77	124
DTX424136	13.6		0.5354	14	77	124
DTX424137	13.7		0.5394	14	77	124
DTX424138	13.8		0.5433	14	77	124
DTX424139	13.9		0.5472	14	77	124
DTX424140	14.0		0.5512	14	77	124
DTX424141	14.1		0.5551	16	83	133
DTX424142	14.2		0.5591	16	83	133
DTX424036F	14.288	9/16	0.5625	16	83	133
DTX424143	14.3		0.5630	16	83	133
DTX424144	14.4		0.5669	16	83	133
DTX424145	14.5		0.5708	16	83	133
DTX424146	14.6		0.5748	16	83	133
DTX424147	14.7		0.5787	16	83	133
DTX424148	14.8		0.5827	16	83	133
DTX424149	14.9		0.5866	16	83	133
DTX424150	15.0		0.5905	16	83	133
DTX424151	15.1		0.5945	16	83	133
DTX424152	15.2		0.5984	16	83	133
DTX424153	15.3		0.6024	16	83	133
DTX424154	15.4		0.6063	16	83	133
DTX424155	15.5		0.6102	16	83	133
DTX424156	15.6		0.6142	16	83	133
DTX424157	15.7		0.6181	16	83	133
DTX424158	15.8		0.6220	16	83	133
DTX424040F	15.875	5/8	0.6250	16	83	133
DTX424159	15.9		0.6260	16	83	133
DTX424160	16.0		0.6299	16	83	133
DTX424161	16.1		0.6339	18	93	143
DTX424162	16.2		0.6378	18	93	143
DTX424163	16.3		0.6417	18	93	143
DTX424164	16.4		0.6457	18	93	143
DTX424165	16.5		0.6495	18	93	143
DTX424166	16.6		0.6535	18	93	143
DTX424167	16.7		0.6575	18	93	143
DTX424168	16.8		0.6614	18	93	143
DTX424169	16.9		0.6654	18	93	143
DTX424170	17.0		0.6692	18	93	143
DTX424171	17.1		0.6732	18	93	143
DTX424172	17.2		0.6772	18	93	143
DTX424173	17.3		0.6811	18	93	143
DTX424174	17.4		0.6850	18	93	143
DTX424175	17.5		0.6889	18	93	143
DTX424176	17.6		0.6929	18	93	143
DTX424177	17.7		0.6968	18	93	143
DTX424178	17.8		0.7008	18	93	143
DTX424179	17.9		0.7047	18	93	143
DTX424180	18.0		0.7087	18	93	143
DTX424181	18.1		0.7126	20	101	153
DTX424182	18.2		0.7165	20	101	153
DTX424183	18.3		0.7205	20	101	153
DTX424184	18.4		0.7244	20	101	153
DTX424185	18.5		0.7283	20	101	153
DTX424186	18.6		0.7323	20	101	153
DTX424187	18.7		0.7362	20	101	153
DTX424188	18.8		0.7402	20	101	153
DTX424189	18.9		0.7441	20	101	153
DTX424190	19.0		0.7480	20	101	153
DTX424048F	19.005	3/4	0.7500	20	101	153
DTX424191	19.1		0.7520	20	101	153
DTX424192	19.2		0.7559	20	101	153
DTX424193	19.3		0.7598	20	101	153
DTX424194	19.4		0.7638	20	101	153
DTX424195	19.5		0.7676	20	101	153
DTX424196	19.6		0.7717	20	101	153
DTX424197	19.7		0.7756	20	101	153
DTX424198	19.8		0.7795	20	101	153
DTX424199	19.9		0.7835	20	101	153
DTX424200	20.0		0.7874	20	101	153
