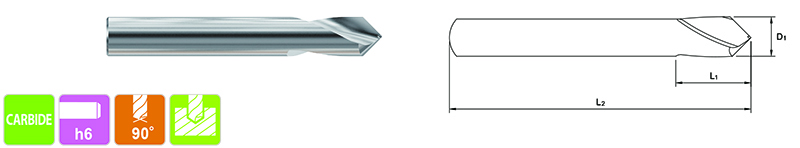

SOLID CARBIDE NC SPOTTING DRILL 90 DEGREE - D5321
  NC Spotting Drills,SOILD CARBIDE, 90 Degrees - D5321
EDP NO. Fractional DIAMETER (D1) Deciaml DIAMETER (D1) FLUTE LENGTH (L1) OVERALL LENGTH (L2)
D5321008 1/8 .1250 5/8 2"
D5321012 3/16 .1875 3/4 2"
D5321016 1/4 .2500 3/4 2-1/2
D5321020 5/16 .3125 1" 2-1/2
D5321024 3/8 .3750 1" 3"
D5321032 1/2 .5000 1" 3"
D5321040 5/8 .6250 1-1/4 3"
D5321048 3/4 .7500 1-3/4 4"
