Tapping Home > Tapping > METRIC THREAD TAPS >

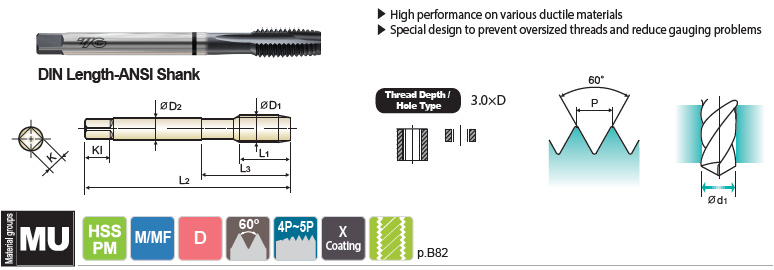

Spiral Point Tap for Multi-Purpose - TRK04 SERIES

Size Pitch EDP No. Limit Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute Tapping Drill Diameter
D1 P L1 L2 L3 ØD2 K Kl Z Ød1
M2 0.4 TRK04132GS D2 0.433 1.77 0.472 0.141 0.110 0.19 2 - 1.6
M2.5 0.45 TRK04173GS D3 0.472 1.97 0.539 0.141 0.110 0.19 2 - 2.1
M3 0.5 TRK04203GS D3 0.374 2.21 0.705 0.141 0.110 0.19 3 - 2.5
M3.5 0.6 TRK04224GS D4 0.413 2.21 0.780 0.141 0.110 0.19 3 - 2.9
M4 0.7 TRK04244GS D4 0.453 2.48 0.819 0.168 0.131 0.25 3 - 3.4
M5 0.8 TRK04284GS D4 0.531 2.75 0.976 0.194 0.152 0.25 3 - 4.3
M6 1.0 TRK04315GS D5 0.591 3.15 1.169 0.255 0.191 0.31 3 - 5.1
M6 0.75 TRK04324GS D4 0.591 3.15 1.169 0.255 0.191 0.31 3 - 5.3
M7 1.0 TRK04345GS D5 0.669 3.15 1.169 0.318 0.238 0.38 3 - 6.1
M8 1.25 TRK04365GS D5 0.669 3.54 1.366 0.318 0.238 0.38 3 - 6.9
M8 1.0 TRK04375GS D5 0.669 3.54 1.366 0.318 0.238 0.38 3 - 7.1
M9 1.25 TRK04395GS D5 0.669 3.54 1.370 0.381 0.286 0.44 3 - 7.9
M9 1.0 TRK04405GS D5 0.669 3.54 1.370 0.381 0.286 0.44 3 - 8.1
M10 1.5 TRK04426GS D6 0.748 3.94 1.531 0.381 0.286 0.44 3 - 8.7
M10 1.25 TRK04435GS D5 0.748 3.94 1.531 0.381 0.286 0.44 3 - 8.9
M10 1.0 TRK04445GS D5 0.748 3.54 1.370 0.381 0.286 0.44 3 - 9.1
M12 1.75 TRK04506GS D6 0.984 4.33 1.657 0.367 0.275 0.44 3 - 10.5
M12 1.5 TRK04516GS D6 0.984 3.94 1.657 0.367 0.275 0.44 3 - 10.7
M12 1.25 TRK04525GS D5 0.984 3.94 1.657 0.367 0.275 0.44 3 - 10.9
M14 2.0 TRK04547GS D7 0.984 4.33 1.657 0.429 0.322 0.50 3 - 12.3
M14 1.5 TRK04556GS D6 0.984 3.94 1.657 0.429 0.322 0.50 3 - 12.7
M14 1.25 TRK04566GS D6 0.984 3.94 1.657 0.429 0.322 0.50 3 - 12.9
M16 2.0 TRK04607GS D7 1.083 4.33 1.811 0.480 0.360 0.56 3 - 14.3
M16 1.5 TRK04616GS D6 1.083 3.94 1.811 0.480 0.360 0.56 3 - 14.7
M18 2.5 TRK04657GS D7 1.083 4.92 1.811 0.542 0.406 0.63 3 - 15.8
M18 1.5 TRK04676GS D6 1.083 4.33 1.811 0.542 0.406 0.63 3 - 16.7
M20 2.5 TRK04708GS D8 1.201 5.51 2.126 0.652 0.489 0.69 3 - 17.8
M20 1.5 TRK04726GS D6 1.201 4.92 2.000 0.652 0.489 0.69 3 - 18.7
M22 2.5 TRK04748GS D8 1.339 5.51 2.126 0.697 0.523 0.75 3 - 19.8
M22 1.5 TRK04766GS D6 1.339 4.92 2.000 0.697 0.523 0.75 3 - 20.7
M24 3.0 TRK04788GS D8 1.339 6.30 2.362 0.760 0.570 0.75 3 27/32 -
M24 1.5 TRK04806GS D6 1.339 5.51 2.126 0.760 0.570 0.75 3 - 22.7
