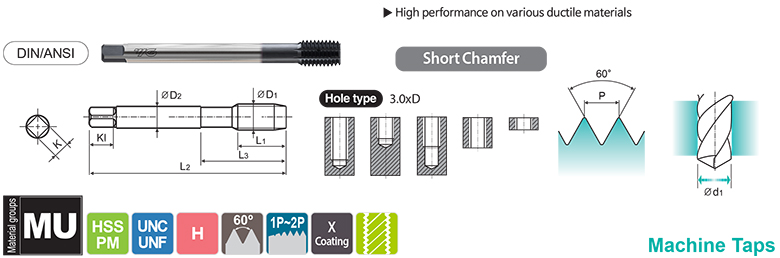

Bottoming High Performance Form Taps - TRR11 series

Size	TPI	EDP No.	Limits	Thread Length	Overall Length	Neck Length	Shank Diameter	Square Size	Square Length	No. of Flute	Tapping Drill Diameter Ød1
ØD1		EDP No.	Limits	L1	L2	L3	ØD2	K	KI	Z	Inch	Metric
#0	80	TRR11023GS	H3	0.315	1.57	0.362	0.141	0.11	0.19	4	-	1.4
#1	64	TRR11043GS	H3	0.315	1.57	0.37	0.141	0.11	0.19	4	-	1.7
#2	56	TRR11083GS	H3	0.386	1.77	0.425	0.141	0.11	0.19	4	-	2
#2	64	TRR11103GS	H3	0.386	1.77	0.425	0.141	0.11	0.19	4	-	2
#3	48	TRR11123GS	H3	0.386	1.97	0.453	0.141	0.11	0.19	4	-	2.3
#3	56	TRR11143GS	H3	0.386	1.97	0.453	0.141	0.11	0.19	4	-	2.3
#4	40	TRR11165GS	H5	0.299	2.21	0.709	0.141	0.11	0.19	4	#38
#4	48	TRR11185GS	H5	0.299	2.21	0.709	0.141	0.11	0.19	4	-	2.6
#5	40	TRR11205GS	H5	0.299	2.21	0.709	0.141	0.11	0.19	4	-	2.9
#5	44	TRR11225GS	H5	0.299	2.21	0.709	0.141	0.11	0.19	4	-	2.9
#6	32	TRR11245GS	H5	0.374	2.21	0.787	0.141	0.11	0.19	4	1/8
#6	40	TRR11265GS	H5	0.374	2.21	0.787	0.141	0.11	0.19	4	-	3.2
#8	32	TRR11285GS	H5	0.374	2.48	0.827	0.168	0.131	0.25	4	-	3.8
#8	36	TRR11305GS	H5	0.374	2.48	0.827	0.168	0.131	0.25	4	#24
#10	24	TRR11326GS	H6	0.500	2.75	0.984	0.194	0.152	0.25	5	-	4.4
#10	32	TRR11346GS	H6	0.500	2.75	0.984	0.194	0.152	0.25	5	-	4.5
#12	24	TRR11367GS	H7	0.500	3.15	1.142	0.22	0.165	0.28	5	--	5
#12	28	TRR11387GS	H7	0.500	3.15	1.142	0.22	0.165	0.28	5	-	5.1
1/4	20	TRR11406GS	H6	0.500	3.15	1.181	0.255	0.191	0.31	5	-	5.8
1/4	28	TRR11426GS	H6	0.500	3.15	1.181	0.255	0.191	0.31	5	15/64
5/16	18	TRR11447GS	H7	0.555	3.54	1.378	0.318	0.238	0.38	5	-	7.3
5/16	24	TRR11467GS	H7	0.555	3.54	1.378	0.318	0.238	0.38	5	-	7.5
3/8	16	TRR11487GS	H7	0.626	3.94	1.575	0.381	0.286	0.44	8	-	8.8
3/8	24	TRR11507GS	H7	0.626	3.94	1.575	0.381	0.286	0.44	8	-	9.0
7/16	14	TRR11528GS	H8	0.713	3.94	1.693	0.323	0.242	0.41	8	-	10.3
7/16	20	TRR11548GS	H8	0.713	3.94	1.693	0.323	0.242	0.41	8	-	10.6
1/2	13	TRR11568GS	H8	0.768	4.33	1.929	0.367	0.275	0.44	8	-	11.8
1/2	20	TRR11588GS	H8	0.768	3.94	1.929	0.367	0.275	0.44	8	-	12.1
9/16	12	TRR11600GS	H10	0.835	4.33	1.969	0.429	0.322	0.50	8	-	13.4
9/16	18	TRR11620GS	H10	0.835	3.94	1.969	0.429	0.322	0.50	8	-	13.7
5/8	11	TRR11640GS	H10	0.909	4.33	2.126	0.48	0.36	0.56	8	-	14.9
5/8	18	TRR11660GS	H10	0.909	3.94	2.126	0.48	0.36	0.56	8	-	15.3
3/4	10	TRR11700GS	H10	0.799	4.92	2.441	0.59	0.442	0.69	8	-	17.9
3/4	16	TRR11720GS	H10	0.626	4.33	2.441	0.59	0.442	0.69	8	-	18.4
7/8	9	TRR1174AGS	H11	0.890	5.51	2.638	0.697	0.523	0.75	8	-	21.0
7/8	14	TRR1176AGS	H11	0.713	4.92	2.638	0.697	0.523	0.75	8	-	21.4
1"	8	TRR1178AGS	H11	1.00	6.30	2.992	0.800	0.600	0.81	8	-	24.0
1"	12	TRR1180AGS	H11	0.835	5.51	2.992	0.800	0.600	0.81	8	-	24.5
