Tapping > METRIC THREAD TAPS >
|
 |
|
|
|
|

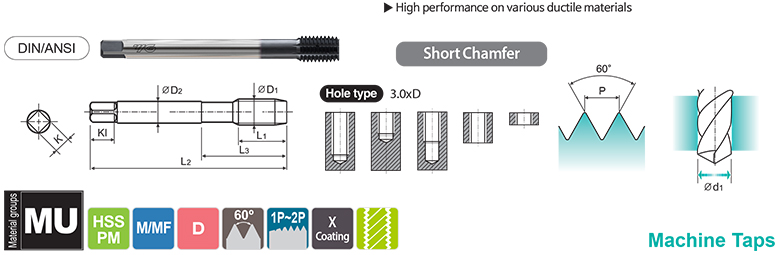

Bottoming High Performance Form Taps - TRR13 series
|
|
|
|
|
|
|
|
| Size |
Pitch |
EDP No. | Limits | Thread Length | Overall Length | Neck Length | Shank Diameter | Square Size | Square Length | No. of Flute | Tapping Drill Diameter Ød1 |
| ØD1 |
P |
L1 | L2 | L3 | ØD2 | K | KI | Z | Inch |
Metric |
| M2 |
0.4 |
TRR13135GS | D5 | 0.315 | 1.77 | 0.362 | 0.141 | 0.11 | 0.19 | 4 | - |
1.80 |
| M2.5 |
0.45 |
TRR13175GS | D5 | 0.354 | 1.97 | 0.425 | 0.141 | 0.11 | 0.19 | 4 | - |
2.30 |
| M3 |
0.5 |
TRR13205GS | D5 | 0.236 | 2.21 | 0.709 | 0.141 | 0.11 | 0.19 | 4 | - |
2.80 |
| M3.5 |
0.6 |
TRR13226GS | D6 | 0.283 | 2.21 | 0.787 | 0.141 | 0.11 | 0.19 | 4 | - |
3.20 |
| M4 |
0.7 |
TRR13246GS | D6 | 0.331 | 2.48 | 0.827 | 0.168 | 0.131 | 0.25 | 4 | - |
3.70 |
| M4.5 |
0.75 |
TRR13266GS | D6 | 0.374 | 2.75 | 0.984 | 0.194 | 0.152 | 0.25 | 4 | - |
4.20 |
| M5 |
0.8 |
TRR13287GS | D7 | 0.378 | 2.75 | 0.984 | 0.194 | 0.152 | 0.25 | 5 | - |
4.60 |
| M6 |
1 |
TRR13318GS | D8 | 0.394 | 3.15 | 1.181 | 0.255 | 0.191 | 0.31 | 5 | - |
5.60 |
| M7 |
1 |
TRR13348GS | D8 | 0.394 | 3.15 | 1.181 | 0.318 | 0.238 | 0.38 | 5 | - |
6.60 |
| M8 |
1.25 |
TRR13369GS | D9 | 0.472 | 3.54 | 1.378 | 0.318 | 0.238 | 0.38 | 5 | - |
7.50 |
| M8 |
1 |
TRR13378GS | D8 | 0.472 | 3.54 | 1.378 | 0.318 | 0.238 | 0.38 | 5 | - |
7.60 |
| M10 |
1.5 |
TRR13420GS | D10 | 0.591 | 3.94 | 1.535 | 0.381 | 0.286 | 0.44 | 8 | - |
9.40 |
| M10 |
1.25 |
TRR13439GS | D9 | 0.591 | 3.94 | 1.535 | 0.381 | 0.286 | 0.44 | 8 | - |
9.50 |
| M12 |
1.75 |
TRR1350AGS | D11 | 0.669 | 4.33 | 1.929 | 0.367 | 0.275 | 0.44 | 8 | - |
11.20 |
| M12 |
1.5 |
TRR1351AGS | D11 | 0.669 | 3.94 | 1.929 | 0.367 | 0.275 | 0.44 | 8 | - |
11.30 |
| M14 |
2 |
TRR1354BGS | D12 | 0.787 | 4.33 | 1.969 | 0.429 | 0.322 | 0.5 | 8 | - |
13.10 |
| M14 |
1.5 |
TRR1355AGS | D11 | 0.787 | 3.94 | 1.969 | 0.429 | 0.322 | 0.5 | 8 | - |
13.30 |
| M16 |
2 |
TRR1360BGS | D12 | 0.787 | 4.33 | 2.126 | 0.48 | 0.36 | 0.56 | 8 | - |
15.10 |
| M16 |
1.5 |
TRR1361AGS | D11 | 0.787 | 3.94 | 2.126 | 0.48 | 0.36 | 0.56 | 8 | - |
15.30 |
| M18 |
2.5 |
TRR1365BGS | D12 | 0.787 | 4.92 | 2.165 | 0.542 | 0.406 | 0.63 | 8 | - |
16.90 |
| M18 |
1.5 |
TRR1367AGS | D11 | 0.591 | 4.33 | 2.165 | 0.542 | 0.406 | 0.63 | 8 | - |
17.30 |
| M20 |
2.5 |
TRR1370BGS | D12 | 0.787 | 5.51 | 2.433 | 0.652 | 0.489 | 0.69 | 8 | - |
18.90 |
| M20 |
1.5 |
TRR1372AGS | D11 | 0.591 | 4.92 | 2.433 | 0.652 | 0.489 | 0.69 | 8 | - |
19.30 |
| M22 |
2.5 |
TRR1374BGS | D12 | 0.787 | 5.51 | 2.654 | 0.697 | 0.523 | 0.75 | 8 | - |
20.90 |
| M22 |
1.5 |
TRR1376AGS | D11 | 0.591 | 4.92 | 2.654 | 0.697 | 0.523 | 0.75 | 8 | - |
21.30 |
| M24 |
3 |
TRR1378EGS | D15 | 0.945 | 6.3 | 2.693 | 0.76 | 0.57 | 0.75 | 8 | - |
22.70 |
| M24 |
1.5 |
TRR1380AGS | D11 | 0.591 | 5.51 | 2.693 | 0.76 | 0.57 | 0.75 | 8 | - |
23.30 |
|
|
 |
|
