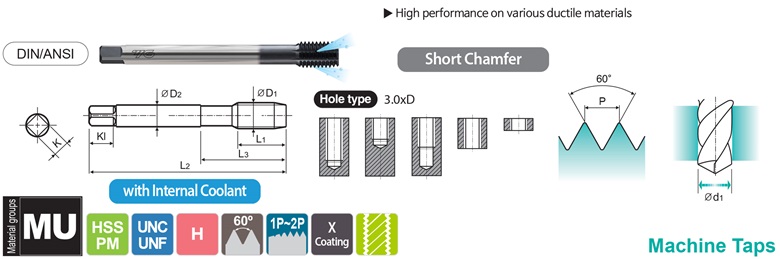

Bottoming High Performance Form Taps with Radial IC - TRR15 series
|
|
|
|
|
|
|
|
| Size |
TPI |
EDP No. | Limits | Thread Length | Overall Length | Neck Length | Shank Diameter | Square Size | Square Length | No. of Flute | Tapping Drill Diameter Ød1 |
| ØD1 |
|
L1 | L2 | L3 | ØD2 | K | KI | Z | Inch |
Metric |
| 1/4 |
20 |
TRR15406GSP | H6 | 0.5 | 3.15 | 1.181 | 0.255 | 0.191 | 0.31 | 5 | - |
5.80 |
| 1/4 |
28 |
TRR15426GSP | H6 | 0.5 | 3.15 | 1.181 | 0.255 | 0.191 | 0.31 | 5 | 15/64 |
- |
| 5/16 |
18 |
TRR15447GSP | H7 | 0.555 | 3.54 | 1.378 | 0.318 | 0.238 | 0.38 | 5 | - |
7.30 |
| 5/16 |
24 |
TRR15467GSP | H7 | 0.555 | 3.54 | 1.378 | 0.318 | 0.238 | 0.38 | 5 | - |
7.50 |
| 3/8 |
16 |
TRR15487GSP | H7 | 0.626 | 3.94 | 1.575 | 0.381 | 0.286 | 0.44 | 8 | - |
8.80 |
| 3/8 |
24 |
TRR15507GSP | H7 | 0.626 | 3.94 | 1.575 | 0.381 | 0.286 | 0.44 | 8 | - |
9.00 |
| 7/16 |
14 |
TRR15528GSP | H8 | 0.713 | 3.94 | 1.693 | 0.323 | 0.242 | 0.41 | 8 | - |
10.30 |
| 7/16 |
20 |
TRR15548GSP | H8 | 0.713 | 3.94 | 1.693 | 0.323 | 0.242 | 0.41 | 8 | - |
10.60 |
| 1/2 |
13 |
TRR15568GSP | H8 | 0.768 | 4.33 | 1.929 | 0.367 | 0.275 | 0.44 | 8 | - |
11.80 |
| 1/2 |
20 |
TRR15588GSP | H8 | 0.768 | 3.94 | 1.929 | 0.367 | 0.275 | 0.44 | 8 | - |
12.10 |
| 9/16 |
12 |
TRR15600GSP | H10 | 0.835 | 4.33 | 1.969 | 0.429 | 0.322 | 0.5 | 8 | - |
13.40 |
| 9/16 |
18 |
TRR15620GSP | H10 | 0.835 | 3.94 | 1.969 | 0.429 | 0.322 | 0.5 | 8 | - |
13.70 |
| 5/8 |
11 |
TRR15640GSP | H10 | 0.909 | 4.33 | 2.126 | 0.48 | 0.36 | 0.56 | 8 | - |
14.90 |
| 5/8 |
18 |
TRR15660GSP | H10 | 0.909 | 3.94 | 2.126 | 0.48 | 0.36 | 0.56 | 8 | - |
15.30 |
| 3/4 |
10 |
TRR15700GSP | H10 | 0.799 | 4.92 | 2.441 | 0.59 | 0.442 | 0.69 | 8 | - |
17.90 |
| 3/4 |
16 |
TRR15720GSP | H10 | 0.626 | 4.33 | 2.441 | 0.59 | 0.442 | 0.69 | 8 | - |
18.40 |
| 7/8 |
9 |
TRR1574AGSP | H11 | 0.89 | 5.51 | 2.638 | 0.697 | 0.523 | 0.75 | 8 | - |
21.00 |
| 7/8 |
14 |
TRR1576AGSP | H11 | 0.713 | 4.92 | 2.638 | 0.697 | 0.523 | 0.75 | 8 | - |
21.40 |
| 1" |
8 |
TRR1578AGSP | H11 | 1 | 6.3 | 2.992 | 0.8 | 0.6 | 0.81 | 8 | - |
24.00 |
| 1" |
12 |
TRR1580AGSP | H11 | 0.835 | 5.51 | 2.992 | 0.8 | 0.6 | 0.81 | 8 | - |
24.50 |
|
|
 |
|
