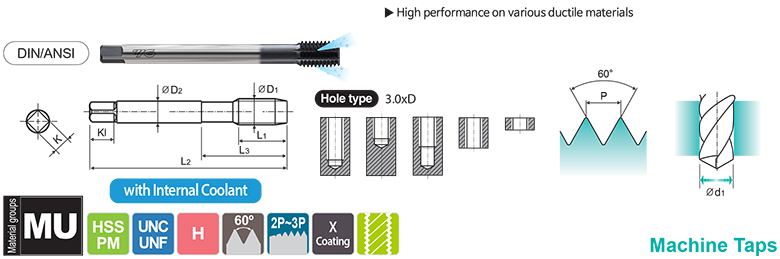

Modified Bottoming High Performance Form Taps with Radial IC - TRR14 series

Size	TPI	EDP No.	Limits	Thread Length	Overall Length	Neck Length	Shank Diameter	Square Size	Square Length	No. of Flute	Tapping Drill Diameter Ød1
ØD1		EDP No.	Limits	L1	L2	L3	ØD2	K	KI	Z	Inch	Metric
1/4	20	TRR14404GSP	H4	0.5	3.15	1.181	0.255	0.191	0.31	5	-	5.80
1/4	20	TRR14406GSP	H6	0.5	3.15	1.181	0.255	0.191	0.31	5	-	5.80
1/4	28	TRR14424GSP	H4	0.5	3.15	1.181	0.255	0.191	0.31	5	15/64	-
1/4	28	TRR14426GSP	H6	0.5	3.15	1.181	0.255	0.191	0.31	5	15/64	-
5/16	18	TRR14445GSP	H5	0.555	3.54	1.378	0.318	0.238	0.38	5	-	7.30
5/16	18	TRR14447GSP	H7	0.555	3.54	1.378	0.318	0.238	0.38	5	-	7.30
5/16	24	TRR14465GSP	H5	0.555	3.54	1.378	0.318	0.238	0.38	5	-	7.50
5/16	24	TRR14467GSP	H7	0.555	3.54	1.378	0.318	0.238	0.38	5	-	7.50
3/8	16	TRR14485GSP	H5	0.626	3.94	1.575	0.381	0.286	0.44	8	-	8.80
3/8	16	TRR14487GSP	H7	0.626	3.94	1.575	0.381	0.286	0.44	8	-	8.80
3/8	24	TRR14505GSP	H5	0.626	3.94	1.575	0.381	0.286	0.44	8	-	9.00
3/8	24	TRR14507GSP	H7	0.626	3.94	1.575	0.381	0.286	0.44	8	-	9.00
7/16	14	TRR14525GSP	H5	0.713	3.94	1.693	0.323	0.242	0.41	8	-	10.30
7/16	14	TRR14528GSP	H8	0.713	3.94	1.693	0.323	0.242	0.41	8	-	10.30
7/16	20	TRR14545GSP	H5	0.713	3.94	1.693	0.323	0.242	0.41	8	-	10.60
7/16	20	TRR14548GSP	H8	0.713	3.94	1.693	0.323	0.242	0.41	8	-	10.60
1/2	13	TRR14565GSP	H5	0.768	4.33	1.929	0.367	0.275	0.44	8	-	11.80
1/2	13	TRR14568GSP	H8	0.768	4.33	1.929	0.367	0.275	0.44	8	-	11.80
1/2	20	TRR14585GSP	H5	0.768	3.94	1.929	0.367	0.275	0.44	8	-	12.10
1/2	20	TRR14588GSP	H8	0.768	3.94	1.929	0.367	0.275	0.44	8	-	12.10
9/16	12	TRR14600GSP	H10	0.835	4.33	1.969	0.429	0.322	0.5	8	-	13.40
9/16	12	TRR14607GSP	H7	0.835	4.33	1.969	0.429	0.322	0.5	8	-	13.40
9/16	18	TRR14620GSP	H10	0.835	3.94	1.969	0.429	0.322	0.5	8	-	13.70
9/16	18	TRR14627GSP	H7	0.835	3.94	1.969	0.429	0.322	0.5	8	-	13.70
5/8	11	TRR14640GSP	H10	0.909	4.33	2.126	0.48	0.36	0.56	8	-	14.90
5/8	11	TRR14647GSP	H7	0.909	4.33	2.126	0.48	0.36	0.56	8	-	14.90
5/8	18	TRR14660GSP	H10	0.909	3.94	2.126	0.48	0.36	0.56	8	-	15.30
5/8	18	TRR14667GSP	H7	0.909	3.94	2.126	0.48	0.36	0.56	8	-	15.30
3/4	10	TRR14700GSP	H10	0.799	4.92	2.441	0.59	0.442	0.69	8	-	17.90
3/4	10	TRR14707GSP	H7	0.799	4.92	2.441	0.59	0.442	0.69	8	-	17.90
3/4	16	TRR14720GSP	H10	0.626	4.33	2.441	0.59	0.442	0.69	8	-	18.40
3/4	16	TRR14727GSP	H7	0.626	4.33	2.441	0.59	0.442	0.69	8	-	18.40
7/8	9	TRR14748GSP	H8	0.89	5.51	2.638	0.697	0.523	0.75	8	-	21.00
7/8	9	TRR1474AGSP	H11	0.89	5.51	2.638	0.697	0.523	0.75	8	-	21.00
7/8	14	TRR14768GSP	H8	0.713	4.92	2.638	0.697	0.523	0.75	8	-	21.40
7/8	14	TRR1476AGSP	H11	0.713	4.92	2.638	0.697	0.523	0.75	8	-	21.40
1"	8	TRR14788GSP	H8	1	6.3	2.992	0.8	0.6	0.81	8	-	24.00
1"	8	TRR1478AGSP	H11	1	6.3	2.992	0.8	0.6	0.81	8	-	24.00
1"	12	TRR14808GSP	H8	0.835	5.51	2.992	0.8	0.6	0.81	8	-	24.50
1"	12	TRR1480AGSP	H11	0.835	5.51	2.992	0.8	0.6	0.81	8	-	24.50
