Tapping	Home > Tapping > METRIC THREAD TAPS >

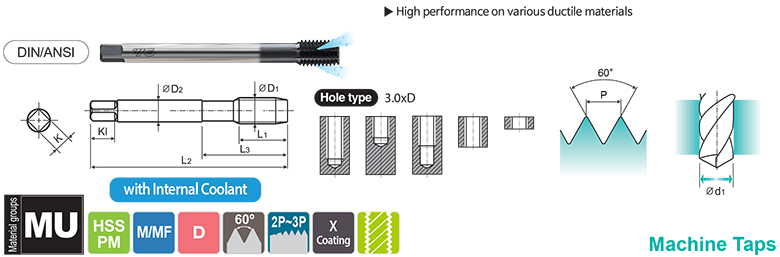

Modified Bottoming High Performance Form Taps with Radial IC - TRR16 series

Size	Pitch	EDP No.	Limits	Thread Length	Overall Length	Neck Length	Shank Diameter	Square Size	Square Length	No. of Flute	Tapping Drill Diameter Ød1
ØD1	P	EDP No.	Limits	L1	L2	L3	ØD2	K	KI	Z	Inch	Metric
M6	1	TRR16315GSP	D5	0.394	3.15	1.181	0.255	0.191	0.31	5	-	5.60
M6	1	TRR16318GSP	D8	0.394	3.15	1.181	0.255	0.191	0.31	5	-	5.60
M7	1	TRR16345GSP	D5	0.394	3.15	1.181	0.318	0.238	0.38	5	-	6.60
M7	1	TRR16348GSP	D8	0.394	3.15	1.181	0.318	0.238	0.38	5	-	6.60
M8	1.25	TRR16365GSP	D5	0.472	3.54	1.378	0.318	0.238	0.38	5	-	7.50
M8	1.25	TRR16369GSP	D9	0.472	3.54	1.378	0.318	0.238	0.38	5	-	7.50
M8	1	TRR16375GSP	D5	0.472	3.54	1.378	0.318	0.238	0.38	5	-	7.60
M8	1	TRR16378GSP	D8	0.472	3.54	1.378	0.318	0.238	0.38	5	-	7.60
M10	1.5	TRR16420GSP	D10	0.591	3.94	1.535	0.381	0.286	0.44	8	-	9.40
M10	1.5	TRR16426GSP	D6	0.591	3.94	1.535	0.381	0.286	0.44	8	-	9.40
M10	1.25	TRR16435GSP	D5	0.591	3.94	1.535	0.381	0.286	0.44	8	-	9.50
M10	1.25	TRR16439GSP	D9	0.591	3.94	1.535	0.381	0.286	0.44	8	-	9.50
M12	1.75	TRR16506GSP	D6	0.669	4.33	1.929	0.367	0.275	0.44	8	-	11.20
M12	1.75	TRR1650AGSP	D11	0.669	4.33	1.929	0.367	0.275	0.44	8	-	11.20
M12	1.5	TRR16516GSP	D6	0.669	3.94	1.929	0.367	0.275	0.44	8	-	11.30
M12	1.5	TRR1651AGSP	D11	0.669	3.94	1.929	0.367	0.275	0.44	8	-	11.30
M14	2	TRR16547GSP	D7	0.787	4.33	1.969	0.429	0.322	0.5	8	-	13.10
M14	2	TRR1654BGSP	D12	0.787	4.33	1.969	0.429	0.322	0.5	8	-	13.10
M14	1.5	TRR16556GSP	D6	0.787	3.94	1.969	0.429	0.322	0.5	8	-	13.30
M14	1.5	TRR1655AGSP	D11	0.787	3.94	1.969	0.429	0.322	0.5	8	-	13.30
M16	2	TRR16607GSP	D7	0.787	4.33	2.126	0.48	0.36	0.56	8	-	15.10
M16	2	TRR1660BGSP	D12	0.787	4.33	2.126	0.48	0.36	0.56	8	-	15.10
M16	1.5	TRR16616GSP	D6	0.787	3.94	2.126	0.48	0.36	0.56	8	-	15.30
M16	1.5	TRR1661AGSP	D11	0.787	3.94	2.126	0.48	0.36	0.56	8	-	15.30
M18	2.5	TRR16657GSP	D7	0.787	4.92	2.165	0.542	0.406	0.63	8	-	16.90
M18	2.5	TRR1665BGSP	D12	0.787	4.92	2.165	0.542	0.406	0.63	8	-	16.90
M18	1.5	TRR16676GSP	D6	0.591	4.33	2.165	0.542	0.406	0.63	8	-	17.30
M18	1.5	TRR1667AGSP	D11	0.591	4.33	2.165	0.542	0.406	0.63	8	-	17.30
M20	2.5	TRR16707GSP	D7	0.787	5.51	2.433	0.652	0.489	0.69	8	-	18.90
M20	2.5	TRR1670BGSP	D12	0.787	5.51	2.433	0.652	0.489	0.69	8	-	18.90
M20	1.5	TRR16726GSP	D6	0.591	4.92	2.433	0.652	0.489	0.69	8	-	19.30
M20	1.5	TRR1672AGSP	D11	0.591	4.92	2.433	0.652	0.489	0.69	8	-	19.30
M22	2.5	TRR16747GSP	D7	0.787	5.51	2.654	0.697	0.523	0.75	8	-	20.90
M22	2.5	TRR1674BGSP	D12	0.787	5.51	2.654	0.697	0.523	0.75	8	-	20.90
M22	1.5	TRR16766GSP	D6	0.591	4.92	2.654	0.697	0.523	0.75	8	-	21.30
M22	1.5	TRR1676AGSP	D11	0.591	4.92	2.654	0.697	0.523	0.75	8	-	21.30
M24	3	TRR16789GSP	D9	0.945	6.3	2.693	0.76	0.57	0.75	8	-	22.70
M24	3	TRR1678EGSP	D15	0.945	6.3	2.693	0.76	0.57	0.75	8	-	22.70
M24	1.5	TRR16806GSP	D6	0.591	5.51	2.693	0.76	0.57	0.75	8	-	23.30
M24	1.5	TRR1680AGSP	D11	0.591	5.51	2.693	0.76	0.57	0.75	8	-	23.30
