Tapping Home > Tapping > UNIFIED THREAD TAPS > YG TAP INOX

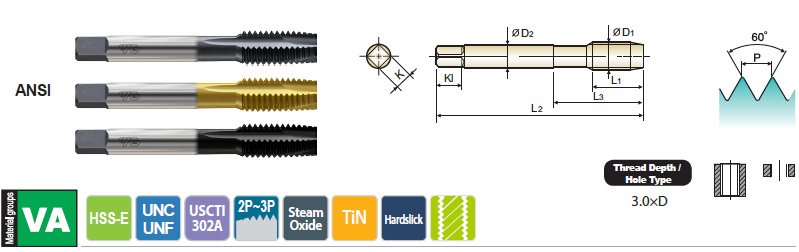

Spiral Point Tap Plug Style for Stainless Steels - I0 / I2 / J2 SERIES

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Steam Oxide TiN Hardslick L2 L1 L3 D2 K Kl
#2 56UNC I0082 I2082 J2082 H2 1.752 0.256 0.433 0.141 0.110 0.190 2
#2 56UNC I0083 - J2083 H3 1.752 0.256 0.433 0.141 0.110 0.190 2
#2 56UNC I0084 - J2084 H4 1.752 0.256 0.433 0.141 0.110 0.190 2
#3 48UNC I0122 - J2122 H2 1.811 0.295 0.492 0.141 0.110 0.190 2
#4 40UNC I0162 I2162 J2162 H2 1.874 0.335 0.563 0.141 0.110 0.190 2
#4 40UNC I0163 - J2163 H3 1.874 0.335 0.563 0.141 0.110 0.190 2
#4 40UNC I0164 - J2164 H4 1.874 0.335 0.563 0.141 0.110 0.190 2
#4 40UNC I0165 - J2165 H5 1.874 0.335 0.563 0.141 0.110 0.190 2
#4 40UNC I0166 - J2166 H6 1.874 0.335 0.563 0.141 0.110 0.190 2
#4 48UNF I0182 - J2182 H2 1.874 0.335 0.563 0.141 0.110 0.190 2
#4 48UNF I0184 - J2184 H4 1.874 0.335 0.563 0.141 0.110 0.190 2
#5 40UNC I0202 I2202 J2202 H2 1.937 0.374 0.626 0.141 0.110 0.190 3
#6 32UNC I0243 I2243 J2243 H3 2.000 0.413 0.689 0.141 0.110 0.190 3
#6 32UNC I0244 - J2244 H4 2.000 0.413 0.689 0.141 0.110 0.190 3
#6 32UNC I0245 - J2245 H5 2.000 0.413 0.689 0.141 0.110 0.190 3
#6 32UNC I0247 - J2247 H7 2.000 0.413 0.689 0.141 0.110 0.190 3
#6 40UNF I0262 - J2262 H2 2.000 0.413 0.689 0.141 0.110 0.190 3
#6 40UNF I0263 - J2263 H3 2.000 0.413 0.689 0.141 0.110 0.190 3
#8 32UNC I0282 - J2282 H2 2.126 0.453 0.752 0.168 0.131 0.250 3
#8 32UNC I0283 I2283 J2283 H3 2.126 0.453 0.752 0.168 0.131 0.250 3
#8 32UNC I0284 - J2284 H4 2.126 0.453 0.752 0.168 0.131 0.250 3
#8 32UNC I0285 - J2285 H5 2.126 0.453 0.752 0.168 0.131 0.250 3
#8 32UNC I0287 - J2287 H7 2.126 0.453 0.752 0.168 0.131 0.250 3
#8 36UNF I0302 - J2302 H2 2.126 0.453 0.752 0.168 0.131 0.250 3
#10 24UNC I0323 I2323 J2323 H3 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 24UNC I0324 - J2324 H4 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 24UNC I0325 - J2325 H5 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 32UNF I0342 - J2342 H2 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 32UNF I0343 I2343 J2343 H3 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 32UNF I0344 - J2344 H4 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 32UNF I0345 - J2345 H5 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 32UNF I0346 - J2346 H6 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 32UNF I0347 - J2347 H7 2.374 0.531 0.906 0.194 0.152 0.250 3
#12 24UNC I0363 - J2363 H3 2.374 0.571 0.906 0.220 0.165 0.280 3
#12 28UNF I0383 - J2383 H3 2.374 0.571 0.906 0.220 0.165 0.280 3
1/4 20UNC I0402 - J2402 H2 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 20UNC I0403 I2403 J2403 H3 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 20UNC I0405 I2405 J2405 H5 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 20UNC I0407 - J2407 H7 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF I0422 - J2422 H2 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF I0423 I2423 J2423 H3 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF I0424 - J2424 H4 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF I0425 - J2425 H5 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF I0426 - J2426 H6 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF I0427 - J2427 H7 2.500 0.591 1.000 0.255 0.191 0.310 3
5/16 18UNC I0443 I2443 J2443 H3 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 18UNC I0445 I2445 J2445 H5 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 18UNC I0447 - J2447 H7 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 24UNF I0463 I2463 J2463 H3 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 24UNF I0464 - J2464 H4 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 24UNF I0465 - J2465 H5 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 24UNF I0466 - J2466 H6 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 24UNF I0467 - J2467 H7 2.720 0.669 1.126 0.318 0.238 0.380 3
3/8 16UNC I0483 I2483 J2483 H3 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 16UNC I0485 I2485 J2485 H5 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 16UNC I0487 - J2487 H7 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF I0503 I2503 J2503 H3 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF I0504 - J2504 H4 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF I0505 - J2505 H5 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF I0507 - J2507 H7 2.937 0.748 1.252 0.381 0.286 0.440 3
7/16 14UNC I0523 I2523 J2523 H3 3.157 0.866 1.437 0.323 0.242 0.410 3
7/16 14UNC I0525 I2525 J2525 H5 3.157 0.866 1.437 0.323 0.242 0.410 3
7/16 20UNF I0543 I2543 J2543 H3 3.157 0.866 1.437 0.323 0.242 0.410 3
7/16 20UNF I0545 I2545 J2545 H5 3.157 0.866 1.437 0.323 0.242 0.410 3
1/2 13UNC I0563 I2563 J2563 H3 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 13UNC I0565 I2565 J2565 H5 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 13UNC I0567 - J2567 H7 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 20UNF I0583 I2583 J2583 H3 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 20UNF I0585 - J2585 H5 3.374 0.984 1.657 0.367 0.275 0.440 3
9/16 12UNC I0603 I2603 J2603 H3 3.594 0.984 1.657 0.429 0.322 0.500 3
9/16 18UNF I0623 I2623 J2623 H3 3.594 0.984 1.657 0.429 0.322 0.500 3
5/8 11UNC I0643 I2643 J2643 H3 3.811 1.083 1.811 0.480 0.360 0.560 3
5/8 11UNC I0645 I2645 J2645 H5 3.811 1.083 1.811 0.480 0.360 0.560 3
5/8 11UNC I0647 - J2647 H7 3.811 1.083 1.811 0.480 0.360 0.560 3
5/8 18UNF I0663 - J2663 H3 3.811 1.083 1.811 0.480 0.360 0.560 3
5/8 18UNF I0665 I2665 J2665 H5 3.811 1.083 1.811 0.480 0.360 0.560 3
5/8 18UNF I0667 - J2667 H7 3.811 1.083 1.811 0.480 0.360 0.560 3
3/4 10UNC I0703 I2703 J2703 H3 4.252 1.201 2.000 0.590 0.442 0.690 3
3/4 16UNF I0725 I2725 J2725 H5 4.252 1.201 2.000 0.590 0.442 0.690 3
7/8 9UNC I0744 I2744 J2744 H4 4.689 1.339 2.220 0.697 0.523 0.750 3
7/8 14UNF I0766 I2766 J2766 H6 4.689 1.339 2.220 0.697 0.523 0.750 3
1 8UNC I0784 I2784 J2784 H4 5.126 1.496 2.500 0.800 0.600 0.810 3
1 12UNF I0806 I2806 J2806 H6 5.126 1.496 2.500 0.800 0.600 0.810 3
