Tapping Home > Tapping > UNIFED THREAD TAPS > SPIRAL FLUTED TAPS

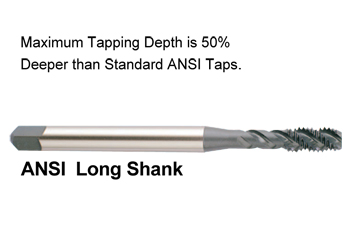

Extended Length Spiral Flute Tap Modified Bottoming Style for Stainless Steels - G7 / G9 SERIES
View TAP SELECTOR / CUTTING DATA

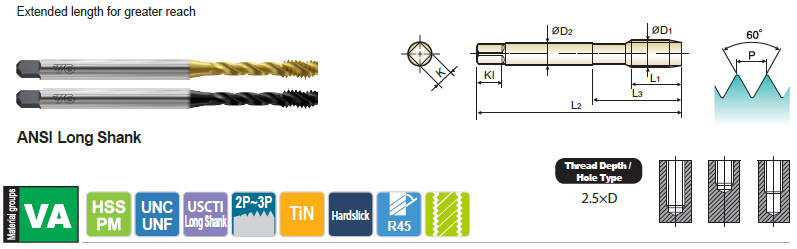

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 TiN 4 OAL Hardslick 4 OAL L2 L1 L3 D2 K Kl
#4 40UNC G7162 G9162 H2 4.000 0.236 0.846 0.141 0.110 0.190 3
#6 32UNC G7243 G9243 H3 4.000 0.276 1.024 0.141 0.110 0.190 3
#8 32UNC G7283 G9283 H3 4.000 0.276 1.122 0.168 0.131 0.250 3
#10 24UNC G7323 G9323 H3 4.000 0.354 1.319 0.194 0.152 0.250 3
#10 32UNF G7343 G9343 H3 4.000 0.276 1.319 0.194 0.152 0.250 3
1/4 20UNC G7403 G9403 H3 4.000 0.433 1.496 0.255 0.191 0.310 3
