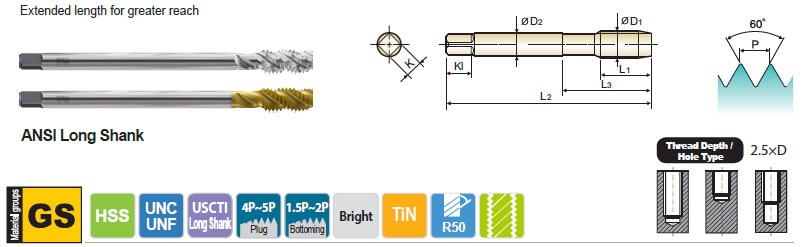

Spiral Flute Tap, 6" Extension - T7D02 / T8D02 SERIES

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bottom
Bright TiN L2 L1 L3 D2 K KI
#6 32UNC T7D02243 T8D02243 H3 6.000 0.413 0.689 0.141 0.110 0.190 2
#8 32UNC T7D02283 T8D02283 H3 6.000 0.453 0.752 0.168 0.131 0.250 3
#10 24UNC T7D02323 T8D02323 H3 6.000 0.531 0.906 0.194 0.152 0.250 3
#10 32UNF T7D02343 T8D02343 H3 6.000 0.531 0.906 0.194 0.152 0.250 3
1/4 20UNC T7D02403 T8D02403 H3 6.000 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF T7D02423 T8D02423 H3 6.000 0.591 1.000 0.255 0.191 0.310 3
5/16 18UNC T7D02443 T8D02443 H3 6.000 0.669 1.126 0.318 0.238 0.380 3
3/8 16UNC T7D02483 T8D02483 H3 6.000 0.748 1.252 0.381 0.286 0.440 3
7/16 14UNC T7D02523 T8D02523 H3 6.000 0.866 1.437 0.323 0.242 0.410 3
1/2 13UNC T7D02563 T8D02563 H3 6.000 0.984 1.657 0.367 0.275 0.440 3
5/8 11UNC T7D02643 T8D02643 H3 6.000 1.083 1.811 0.480 0.360 0.560 4
