Thread Mills

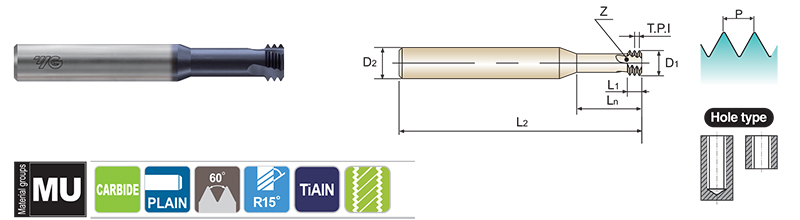

THREAD MILLS CARBIDE UN MINIATURE TIALN COATED - L12DE series

EDP Size Pitch Cutter Diamter Shank Diameter Thread Length Neck Length Overall Length No. of Flute
TiAlN TPI D1 D2 L1 Ln L2 Z
L12DE040#1640.0550.250.0470.1652.53
L12DE080#2560.0650.250.0540.1972.53
L12DE120#3480.0750.250.0630.2362.53
L12DE160#4400.0830.250.0750.2362.53
L12DE300#8360.130.250.0830.3432.53
L12DE240#6320.10.250.0940.2922.53
L12DE280#8320.1260.250.0940.3942.53
L12DE340#10320.150.250.0940.4062.53
L12DE4201/4280.2070.250.1070.522.53
L12DE320#10240.1410.250.1250.4022.53
L12DE4605/16240.2630.3120.1250.652.53
L12DE4001/4200.1920.250.150.5282.53
L12DE5407/16200.360.3750.150.9062.54
L12DE4405/16180.2420.3120.1670.652.53
L12DE4803/8160.2640.3750.1880.7522.53
L12DE5207/16140.3540.3750.2140.9172.54
L12DE5601/2130.4070.50.2311.0834
L12DE6009/16120.4650.50.251.243.54
