Milling
HIGH PERFORMANCE CARBIDE STEEL

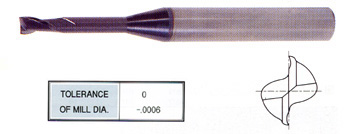

2 FLUTE for RIB PROCESSING

 RIB PROCESSING / EM966 Series
MILL DIAMETER d1 SHANK DIAMETER d2 LENGTH OF CUT l1 LENGTH OF BELOW SHANK l2 OVERALL LENGTH l3 NECK DIAMETER d3 EDP No.
1/32 1/8 3/64 7/32 2 .029 93548
1/32 1/8 3/64 5/16 2 .029 93549
3/64 1/8 1/16 7/32 2 .045 93550
3/64 1/8 1/16 9/32 2 .045 93551
3/64 1/8 1/16 1/2 2 .045 93552
1/16 1/8 3/32 5/16 2 .060 93553
1/16 1/8 3/32 3/8 2 .060 93554
1/16 1/8 3/32 1/2 2 .060 93555
1/16 1/8 3/32 5/8 2 .060 93556
5/64 1/8 1/8 1/2 2 .076 93557
5/64 1/8 1/8 5/8 2 .076 93558
3/32 1/8 9/64 1/2 2 .090 93559
3/32 1/8 9/64 5/8 2 .090 93560
1/8 1/4 3/16 9/16 2-1/4 .120 93561
1/8 1/4 3/16 3/4 2-1/4 .120 93562
