YG-1: BEST VALUE IN THE WORLD OF CUTTING TOOLS

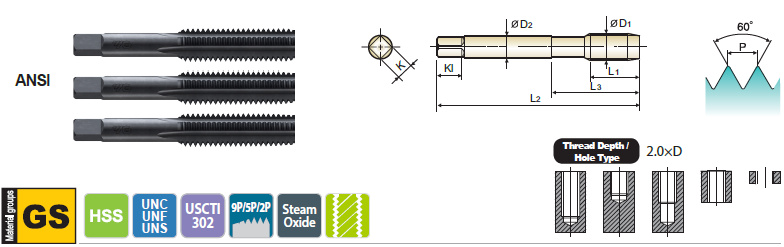

Size	T.P.I	EDP No.			Limit	Overall Length	Thread Length	Neck Length	Shank Diameter	Square Size	Square Length	No. of Flute
Size		Steam Oxide				Overall Length	Thread Length	Neck Length	Shank Diameter	Square Size	Square Length
D1		Taper	Plug	Bottoming		L2	L1	L3	D2	K	Kl
#0	80UNF	T6316026	T6316027	T6316028	H1	1.634	0.315	0.512	0.141	0.110	0.190	2
#1	64UNC	T6316046	T6316047	T6316048	H1	1.693	0.374	0.571	0.141	0.110	0.190	2
#1	72UNF	T6316066	T6316067	T6316068	H1	1.693	0.374	0.571	0.141	0.110	0.190	2
#2	56UNC	T6316086	T6316087	T6316088	H2	1.752	0.433	0.650	0.141	0.110	0.190	3
#3	48UNC	T6316126	T6316127	T6316128	H2	1.811	0.492	0.728	0.141	0.110	0.190	3
#3	56UNF	T6316146	T6316147	T6316148	H2	1.811	0.492	0.728	0.141	0.110	0.190	3
#4	36UNS	T6316156	T6316157	T6316158	H2	1.874	0.563	0.799	0.141	0.110	0.190	3
#4	40UNC	T6316166H1	T6316167H1	T6316168H1	H1	1.874	0.563	0.799	0.141	0.110	0.190	3
#4	40UNC	T6316166	T6316167	T6316168	H2	1.874	0.563	0.799	0.141	0.110	0.190	3
#5	40UNC	T6316206	T6316207	T6316208	H2	1.937	0.626	0.882	0.141	0.110	0.190	3
#5	44UNF	T6316226	T6316227	T6316228	H2	1.937	0.626	0.882	0.141	0.110	0.190	3
#6	32UNC	T6316246H1	T6316247H1	T6316248H1	H1	2.000	0.689	0.965	0.141	0.110	0.190	3
#6	32UNC	T6316246H2	T6316247H2	T6316248H2	H2	2.000	0.689	0.965	0.141	0.110	0.190	3
#6	32UNC	T6316246	T6316247	T6316248	H3	2.000	0.689	0.965	0.141	0.110	0.190	3
#6	40UNF	T6316266	T6316267	T6316268	H2	2.000	0.689	0.965	0.141	0.110	0.190	3
#8	32UNC	T6316286H1	T6316287H1	T6316288H1	H1	2.126	0.752	1.047	0.168	0.131	0.250	4
#8	32UNC	T6316286H2	T6316287H2	T6316288H2	H2	2.126	0.752	1.047	0.168	0.131	0.250	4
#8	32UNC	T6316286	T6316287	T6316288	H3	2.126	0.752	1.047	0.168	0.131	0.250	4
#8	36UNF	T6316306	T6316307	T6316308	H2	2.126	0.752	1.047	0.168	0.131	0.250	4
#10	24UNC	T6316326H1	T6316327H1	T6316328H1	H1	2.374	0.906	1.220	0.194	0.152	0.250	4
#10	24UNC	T6316326H2	T6316327H2	T6316328H2	H2	2.374	0.906	1.220	0.194	0.152	0.250	4
#10	24UNC	T6316326	T6316327	T6316328	H3	2.374	0.906	1.220	0.194	0.152	0.250	4
#10	32UNF	T6316346H1	T6316347H1	T6316348H1	H1	2.374	0.906	1.220	0.194	0.152	0.250	4
#10	32UNF	T6316346H2	T6316347H2	T6316348H2	H2	2.374	0.906	1.220	0.194	0.152	0.250	4
#10	32UNF	T6316346	T6316347	T6316348	H3	2.374	0.906	1.220	0.194	0.152	0.250	4
#12	24UNC	T6316366	T6316367	T6316368	H3	2.374	0.906	1.220	0.220	0.165	0.280	4
#12	28UNF	T6316386	T6316387	T6316388	H3	2.374	0.906	1.220	0.220	0.165	0.280	4
1/4	20UNC	T6316406	T6316407	T6316408	H3	2.500	1.000	1.354	0.255	0.191	0.310	4
1/4	28UNF	T6316426	T6316427	T6316428	H3	2.500	1.000	1.354	0.255	0.191	0.310	4
5/16	18UNC	T6316446H2	T6316447H2	T6316448H2	H2	2.720	1.126	1.500	0.318	0.238	0.380	4
5/16	18UNC	T6316446	T6316447	T6316448	H3	2.720	1.126	1.500	0.318	0.238	0.380	4
5/16	24UNF	T6316466	T6316467	T6316468	H3	2.720	1.126	1.500	0.318	0.238	0.380	4
3/8	16UNC	T6316486	T6316487	T6316488	H3	2.937	1.252	1.646	0.381	0.286	0.440	4
3/8	24UNF	T6316506	T6316507	T6316508	H3	2.937	1.252	1.646	0.381	0.286	0.440	4
7/16	14UNC	T6316526	T6316527	T6316528	H3	3.157	1.437	-	0.323	0.242	0.410	4
7/16	20UNF	T6316546	T6316547	T6316548	H3	3.157	1.437	-	0.323	0.242	0.410	4
1/2	13UNC	T6316566	T6316567	T6316568	H3	3.374	1.657	-	0.367	0.275	0.440	4
1/2	20UNF	T6316586	T6316587	T6316588	H3	3.374	1.657	-	0.367	0.275	0.440	4
9/16	12UNC	T6316606	T6316607	T6316608	H3	3.594	1.657	-	0.429	0.322	0.500	4
9/16	18UNF	T6316626	T6316627	T6316628	H3	3.594	1.657	-	0.429	0.322	0.500	4
5/8	11UNC	T6316646	T6316647	T6316648	H3	3.811	1.811	-	0.480	0.360	0.560	4
5/8	18UNF	T6316666	T6316667	T6316668	H3	3.811	1.811	-	0.480	0.360	0.560	4
11/16	11UNS	T6316A06	T6316A07	T6316A08	H3	4.031	1.811	-	0.542	0.406	0.630	4
11/16	16UNS	T6316A26	T6316A27	T6316A28	H3	4.031	1.811	-	0.542	0.406	0.630	4
3/4	10UNC	T6316706	T6316707	T6316708	H3	4.252	2.000	-	0.590	0.442	0.690	4
3/4	16UNF	T6316726	T6316727	T6316728	H3	4.252	2.000	-	0.590	0.442	0.690	4
7/8	9UNC	T6316746	T6316747	T6316748	H4	4.689	2.220	-	0.697	0.523	0.750	4
7/8	14UNF	T6316766	T6316767	T6316768	H4	4.689	2.220	-	0.697	0.523	0.750	4
1	8UNC	T6316786	T6316787	T6316788	H4	5.126	2.500	-	0.800	0.600	0.810	4
1	12UNF	T6316806	T6316807	T6316808	H4	5.126	2.500	-	0.800	0.600	0.810	4
