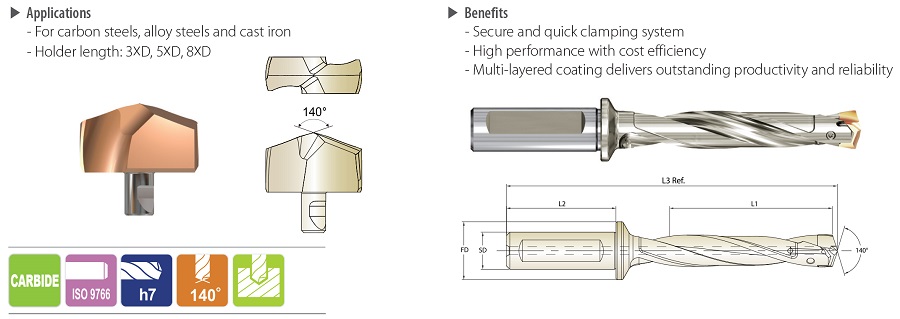

I-ONE DRILLS INSERTS & HOLDERS DIA 20.00 to 21.99 - Y201H, Y202Z

Series range Insert EDP Insert O.D.
(h7)		 Holder EDP Shank Dia. Shank Length Flange Dia. Drilling Depth Overall Length Screw No.
(mm) H-Coating Z-Coating dec. frac. mm L2 FD L1 L3 Ref.
S20
Ø20.00
to
Ø21.99		 Y201H2000 Y202Z2000 .7874 20.00 ZD20003100
ZD20005100
ZD20008100 		1 2-3/16 1-1/4 3D
5D
8D		 2-31/64
4-9/64
6-39/64		 5-51/64
7-13/32
9-53/64		 TX2021P9
Y201H2010 Y202Z2010 .7913 20.10
Y201H2020 Y202Z2020 .7953 20.20
Y201H2024 Y202Z2024 .7969 51/64 20.24
Y201H2030 Y202Z2030 .7992 20.30
Y201H2040 Y202Z2040 .8031 20.40
Y201H2050 Y202Z2050 .8071 20.50
Y201H2060 Y202Z2060 .8110 20.60
Y201H2064 Y202Z2064 .8125 13/16 20.64
Y201H2070 Y202Z2070 .8150 20.70
Y201H2080 Y202Z2080 .8189 20.80
Y201H2090 Y202Z2090 .8228 20.90
Y201H2100 Y202Z2100 .8268 21.00 ZD21003100
ZD21005100
ZD21008100 		1 2-3/16 1-1/4 3D
5D
8D		 2-19/32
4-21/64
6-59/64		 5-29/32
7-19/32
10-9/64		 TX2122P9
Y201H2103 Y202Z2103 .8281 53/64 21.03
Y201H2110 Y202Z2110 .8307 21.10
Y201H2120 Y202Z2120 .8346 21.20
Y201H2130 Y202Z2130 .8386 21.30
Y201H2140 Y202Z2140 .8425 21.40
Y201H2143 Y202Z2143 .8438 27/32 21.43
Y201H2150 Y202Z2150 .8465 21.50
Y201H2160 Y202Z2160 .8504 21.60
Y201H2170 Y202Z2170 .8543 21.70
Y201H2180 Y202Z2180 .8583 21.80
Y201H2183 Y202Z2183 .8594 55/64 21.83
Y201H2190 Y202Z2190 .8622 21.90
