I-ONE DRILLS INSERTS & HOLDERS DIA 32.00 to 33.99 - Y321H

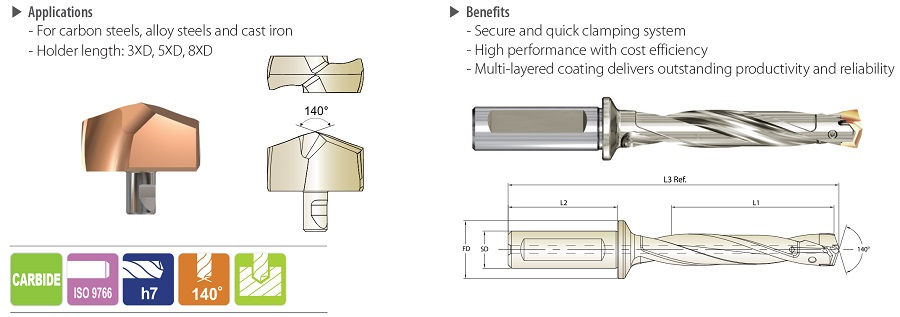

  i - ONE DRILLS INSERTS & HOLDERS Y321H
Series range Insert EDP Insert O.D.(h7) Holder EDP Shank Dia. Shank Length Flange Dia. Drilling Depth Overall Length Screw No.
(mm) H-Coating dec. frac. mm   L2 FD L1 L3 Ref.
S32
Ø32.00
to
Ø33.99		 Y321H3200 1.2598 32.00 ZD32003125
ZD32005125
ZD32008125 		1-1/4 2-3/8 1-15/32 3D
5D
8D		 3-57/64
6-1/2
10-25/64		 7-25/32
10-21/64
14-11/64		 TX3233P15
Y321H3210 1.2638 32.10
Y321H3215 1.26571-17/64 32.15
Y321H3220 1.2677 32.20
Y321H3230 1.2717 32.30
Y321H3240 1.2756 32.40
Y321H3250 1.2795 32.50
Y321H3254 1.28111-9/32 32.54
Y321H3260 1.2835 32.60
Y321H3270 1.2874 32.70
Y321H3280 1.2913 32.80
Y321H3290 1.2953 32.90
Y321H3294 1.29691-19/64 32.94
Y321H3300 1.2992 33.00 ZD33003125
ZD33005125
ZD33008125 		1-1/4 2-3/8 1-15/32 3D
5D
8D		 4-1/64
6-11/16
10-45/64		 7-15/16
10-37/64
14-17/32		 TX3334P15
Y321H3310 1.3031 33.10
Y321H3320 1.3071 33.20
Y321H3330 1.3110 33.30
Y321H3334 1.31261-5/16 33.34
Y321H3340 1.3150 33.40
Y321H3350 1.3189 33.50
Y321H3360 1.3228 33.60
Y321H3370 1.3268 33.70
Y321H3373 1.32801-21/64 33.73
Y321H3380 1.3307 33.80
Y321H3390 1.3346 33.90
