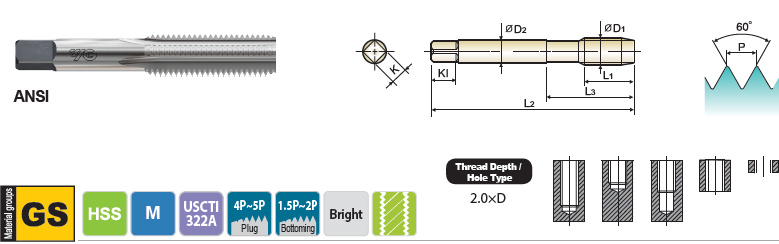

Size	Pitch	EDP No.		Limit	Overall Length	Thread Length	Neck Length	Shank Diameter	Square Size	Square Length	No. of Flute
D1	P	Plug	Bottoming	Limit	L2	L1	L3	D2	K	KL	No. of Flute
M2	0.4	T7405137	T7405138	D2	1.811	0.492	0.728	0.141	0.110	0.190	2
M2.5	0.45	T7405177	T7405178	D2	1.937	0.626	0.882	0.141	0.110	0.190	2
M3	0.5	T7405207	T7405208	D2	2.000	0.689	0.965	0.141	0.110	0.190	3
M4	0.7	T7405247	T7405248	D3	2.374	0.906	1.220	0.194	0.152	0.250	3
M5	0.8	T7405287	T7405288	D3	2.500	1.000	-	0.255	0.191	0.310	3
M6	1.0	T7405317	T7405318	D3	2.720	1.126	-	0.318	0.238	0.380	3
M8	1.25	T7405367	T7405368	D3	2.937	1.252	1.646	0.381	0.286	0.440	3
M10	1.5	T7405427	T7405428	D4	3.374	1.657	-	0.367	0.275	0.440	3
M12	1.75	T7405507	T7405508	D4	3.594	1.657	-	0.429	0.322	0.500	3
