Tapping Home > Tapping > METRIC THREAD TAPS > STRAIGHT FLUTE CAST IRON TAPS

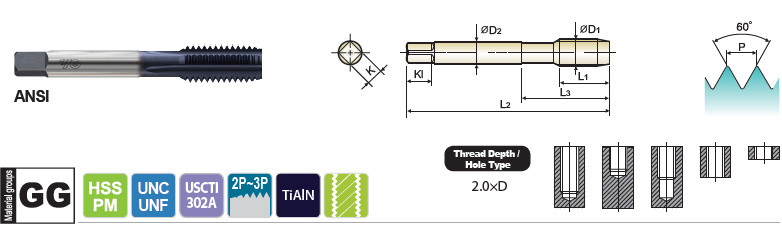

STRAIGHT FLUTE TAP MODIFIED BOTTOMING STYLE for CAST IRON

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 TiAlN L2 L1 L3 D2 K Kl
#10 24UNC TR323 H3 2.374 0.531 0.906 0.194 0.152 0.250 4
#10 24UNC TR325 H5 2.374 0.531 0.906 0.194 0.152 0.250 4
#10 32UNF TR343 H3 2.374 0.531 0.906 0.194 0.152 0.250 4
1/4 20UNC TR403 H3 2.500 0.591 1.000 0.255 0.191 0.310 4
1/4 20UNC TR405 H5 2.500 0.591 1.000 0.255 0.191 0.310 4
1/4 28UNF TR423 H3 2.500 0.591 1.000 0.255 0.191 0.310 4
5/16 18UNC TR443 H3 2.720 0.669 1.126 0.318 0.238 0.380 4
5/16 18UNC TR445 H5 2.720 0.669 1.126 0.318 0.238 0.380 4
5/16 24UNF TR463 H3 2.720 0.669 1.126 0.318 0.238 0.380 4
3/8 16UNC TR483 H3 2.937 0.748 1.252 0.381 0.286 0.440 4
3/8 16UNC TR485 H5 2.937 0.748 1.252 0.381 0.286 0.440 4
3/8 24UNF TR503 H3 2.937 0.748 1.252 0.381 0.286 0.440 4
7/16 14UNC TR523 H3 3.157 0.866 1.437 0.323 0.242 0.410 4
7/16 14UNC TR525 H5 3.157 0.866 1.437 0.323 0.242 0.410 4
7/16 20UNF TR543 H3 3.157 0.866 1.437 0.323 0.242 0.410 4
7/16 20UNF TR545 H5 3.157 0.866 1.437 0.323 0.242 0.410 4
1/2 13UNC TR563 H3 3.374 0.984 1.657 0.367 0.275 0.440 4
1/2 13UNC TR565 H5 3.374 0.984 1.657 0.367 0.275 0.440 4
1/2 20UNF TR583 H3 3.374 0.984 1.657 0.367 0.275 0.440 4
1/2 20UNF TR585 H5 3.374 0.984 1.657 0.367 0.275 0.440 4
9/16 12UNC TR603 H3 3.594 0.984 1.657 0.429 0.322 0.500 4
9/16 12UNC TR605 H5 3.594 0.984 1.657 0.429 0.322 0.500 4
9/16 18UNF TR623 H3 3.594 0.984 1.657 0.429 0.322 0.500 4
9/16 18UNF TR625 H3 3.594 0.984 1.657 0.429 0.322 0.500 4
5/8 11UNC TR643 H3 3.811 1.083 1.811 0.480 0.360 0.560 4
5/8 11UNC TR645 H5 3.811 1.083 1.811 0.480 0.360 0.560 4
5/8 18UNF TR663 H3 3.811 1.083 1.811 0.480 0.360 0.560 4
5/8 18UNF TR665 H5 3.811 1.083 1.811 0.480 0.360 0.560 4
3/4 10UNC TR703 H3 4.252 1.201 2.000 0.590 0.442 0.690 4
3/4 10UNC TR705 H5 4.252 1.201 2.000 0.590 0.442 0.690 4
3/4 16UNF TR723 H3 4.252 1.201 2.000 0.590 0.442 0.690 4
3/4 16UNF TR725 H5 4.252 1.201 2.000 0.590 0.442 0.690 4
