Tapping Home > Tapping > UNIFED THREAD TAPS > STRAIGHT FLUTE CAST IRON TAPS

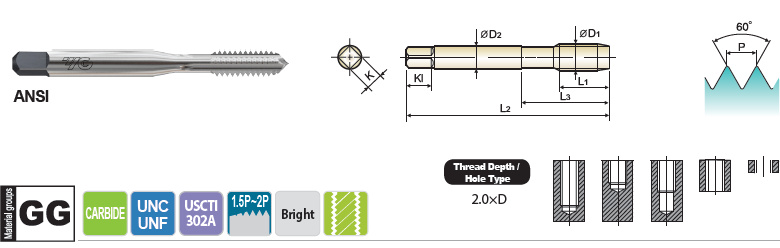

STRAIGHT FLUTE TAP BOTTOMING STYLE for ALUMINUM ALLOY and CAST IRON

Size T.P.I EDP No. Class of Fit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bright L2 L1 L3 D2 K Kl
#10 24UNC T0C01322 2B 2.374 0.531 0.906 0.194 0.152 0.250 4
#10 32UNF T0C01342 2B 2.374 0.531 0.906 0.194 0.152 0.250 4
#12 24UNC T0C01362 2B 2.374 0.571 0.906 0.220 0.165 0.280 4
1/4 20UNC T0C01402 2B 2.500 0.591 1.000 0.255 0.191 0.310 4
1/4 28UNF T0C01422 2B 2.500 0.591 1.000 0.255 0.191 0.310 4
5/16 18UNC T0C01442 2B 2.720 0.669 1.126 0.318 0.238 0.380 4
5/16 24UNF T0C01462 2B 2.720 0.669 1.126 0.318 0.238 0.380 4
3/8 16UNC T0C01482 2B 2.937 0.748 1.252 0.381 0.286 0.440 4
3/8 24UNF T0C01502 2B 2.937 0.748 1.252 0.381 0.286 0.440 4
