Tapping Home > Tapping > UNIFED THREAD TAPS > SPIRAL FLUTED TAPS

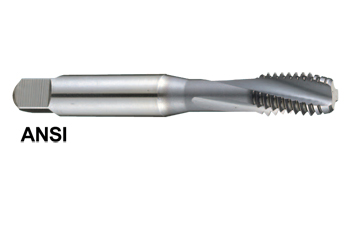

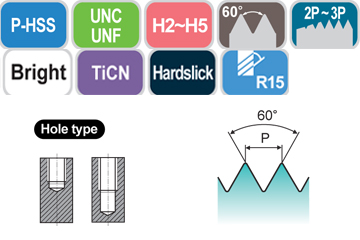

SPIRAL FLUTE TAPS MODIFIED BOTTOMING STYLE STEELS up to 45HRc
View TAP SELECTOR / CUTTING DATA

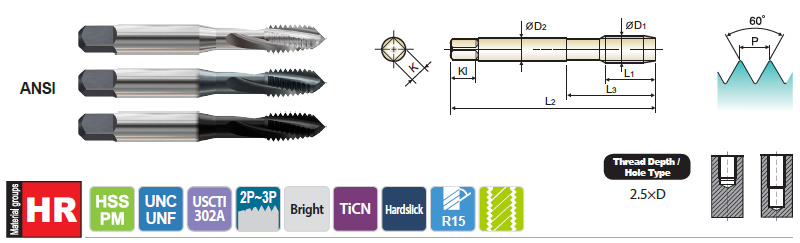

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bright TiCN Hardslick L2 L1 L3 D2 K KI
#2 56UNC H6082 H7082 H8082 H2 1.752 0.157 0.433 0.141 0.110 0.190 3
#4 40UNC H6162 H7162 H8162 H2 1.874 0.236 0.563 0.141 0.110 0.190 3
#5 40UNC H6202 H7202 H8202 H2 1.937 0.236 0.626 0.141 0.110 0.190 3
#6 32UNC H6243 H7243 H8243 H3 2.000 0.276 0.689 0.141 0.110 0.190 3
#8 32UNC H6283 H7283 H8283 H3 2.126 0.276 0.752 0.168 0.131 0.250 3
#10 24UNC H6323 H7323 H8323 H3 2.374 0.354 0.906 0.194 0.152 0.250 3
#10 32UNF H6343 H7343 H8343 H3 2.374 0.276 0.906 0.194 0.152 0.250 3
1/4 20UNC H6405 H7405 H8405 H5 2.500 0.433 1.000 0.255 0.191 0.310 3
1/4 28UNF H6424 H7424 H8424 H4 2.500 0.354 1.000 0.255 0.191 0.310 3
5/16 18UNC H6445 H7445 H8445 H5 2.720 0.472 1.126 0.318 0.238 0.380 3
5/16 24UNF H6464 H7464 H8464 H4 2.720 0.394 1.126 0.318 0.238 0.380 3
3/8 16UNC H6485 H7485 H8485 H5 2.937 0.551 1.252 0.381 0.286 0.440 3
3/8 24UNF H6504 H7504 H8504 H4 2.937 0.394 1.252 0.381 0.286 0.440 3
7/16 14UNC H6525 H7525 H8525 H5 3.157 0.591 1.850 0.323 0.242 0.410 3
7/16 20UNF H6545 H7545 H8545 H5 3.157 0.472 1.850 0.323 0.242 0.410 3
1/2 13UNC H6565 H7565 H8565 H5 3.374 0.630 2.067 0.367 0.275 0.440 3
1/2 20UNF H6585 H7585 H8585 H5 3.374 0.472 2.067 0.367 0.275 0.440 3
5/8 11UNC H6645 H7645 H8645 H5 3.811 0.748 2.205 0.480 0.360 0.560 4
5/8 18UNF H6665 H7665 H8665 H5 3.811 0.512 2.205 0.480 0.360 0.560 4
3/4 10UNC H6705 H7705 H8705 H5 4.252 0.827 2.480 0.590 0.442 0.690 4
3/4 16UNF H6725 H7725 H8725 H5 4.252 0.591 2.480 0.590 0.442 0.690 4
