Tapping Home > Tapping > UNIFED THREAD TAPS > SPIRAL FLUTED TAPS

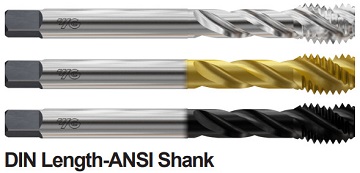

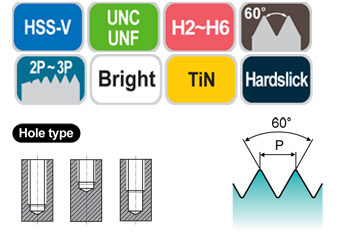

Spiral Flute Tap Bottoming Style for General Purpose - G0 / G1 / G2 SERIES
View TAP SELECTOR / CUTTING DATA

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute

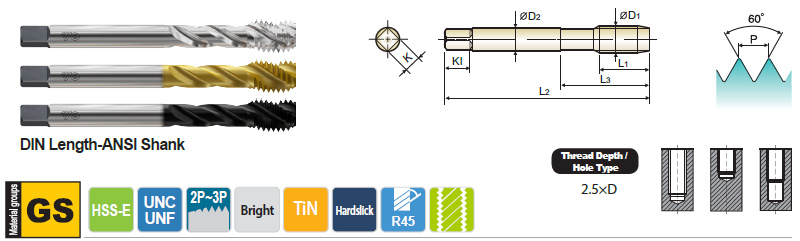

D1 Bright TiN Hardslick L2 L1 L3 D2 K KI
#2 56UNC G0082 G1082 G2082 H2 1.752 0.437 0.650 0.141 0.110 0.190 2
#4 40UNC G0162 G1162 G2162 H2 2.205 0.311 0.563 0.141 0.110 0.190 2
#5 40UNC G0202 G1202 G2202 H2 2.205 0.311 0.626 0.141 0.110 0.190 3
#6 32UNC G0243 G1243 G2243 H3 2.205 0.374 0.689 0.141 0.110 0.190 3
#8 32UNC G0283 G1283 G2283 H3 2.480 0.374 0.752 0.168 0.131 0.250 3
#10 24UNC G0323 G1323 G2323 H3 2.756 0.500 0.906 0.194 0.152 0.250 3
#10 32UNF G0343 G1343 G2343 H3 2.756 0.500 0.906 0.194 0.152 0.250 3
1/4 20UNC G0403 G1403 G2403 H3 3.150 0.626 1.000 0.255 0.191 0.310 3
1/4 20UNC G0405 G1405 G2405 H5 3.150 0.626 1.000 0.255 0.191 0.310 3
1/4 28UNF G0423 G1423 G2423 H3 3.150 0.626 1.000 0.255 0.191 0.310 3
1/4 28UNF G0443 G1443 G2443 H4 3.150 0.626 1.000 0.255 0.191 0.310 3
5/16 18UNC G0445 G1445 G2445 H5 3.543 0.689 1.126 0.318 0.238 0.380 3
5/16 24UNF G0463 G1463 G2463 H4 3.543 0.689 1.126 0.318 0.238 0.380 3
3/8 16UNC G0483 G1483 G2483 H3 3.937 0.748 1.252 0.381 0.286 0.440 3
3/8 16UNC G0485 G1485 G2485 H5 3.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF G0503 G1503 G2503 H4 3.937 0.748 1.252 0.381 0.286 0.440 3
7/16 14UNC G0523 G1523 G2523 H3 3.937 0.874 1.437 0.323 0.242 0.410 3
7/16 14UNC G0525 G1525 G2525 H5 3.937 0.874 1.437 0.323 0.242 0.410 3
7/16 20UNF G0543 G1543 G2543 H3 3.937 0.874 1.437 0.323 0.242 0.410 3
7/16 20UNF G0545 G1545 G2545 H5 3.937 0.874 1.437 0.323 0.242 0.410 3
1/2 13UNC G0563 G1563 G2563 H3 4.331 0.937 1.594 0.367 0.275 0.440 3
1/2 13UNC G0565 G1565 G2565 H5 4.331 0.937 1.594 0.367 0.275 0.440 3
1/2 20UNF G0583 G1583 G2583 H3 3.937 0.937 1.594 0.367 0.275 0.440 3
1/2 20UNF G0585 G1585 G2585 H5 3.937 0.937 1.594 0.367 0.275 0.440 3
9/16 12UNC G0603 G1603 G2603 H3 4.331 1.000 1.657 0.429 0.322 0.500 3
9/16 12UNC G0605 G1605 G2605 H5 4.331 1.000 1.657 0.429 0.322 0.500 3
9/16 18UNF G0623 G1623 G2623 H3 3.937 1.000 1.657 0.429 0.322 0.500 3
9/16 18UNF G0625 G1625 G2625 H5 3.937 1.000 1.657 0.429 0.322 0.500 3
5/8 11UNC G0643 G1643 G2643 H3 4.331 1.094 1.811 0.480 0.360 0.560 4
5/8 11UNC G0645 G1645 G2645 H5 4.331 1.094 1.811 0.480 0.360 0.560 4
5/8 18UNF G0663 G1663 G2663 H3 3.937 1.094 1.811 0.480 0.360 0.560 4
5/8 18UNF G0665 G1665 G2665 H5 3.937 1.094 1.811 0.480 0.360 0.560 4
3/4 10UNC G0703 G1703 G2703 H3 4.921 1.220 2.000 0.590 0.442 0.690 4
3/4 10UNC G0705 G1705 G2705 H5 4.921 1.220 2.000 0.590 0.442 0.690 4
3/4 16UNF G0723 G1723 G2723 H3 4.331 1.220 2.000 0.590 0.442 0.690 4
3/4 16UNF G0725 G1725 G2725 H5 4.331 1.220 2.000 0.590 0.442 0.690 4
7/8 9UNC G0746 G1746 G2746 H6 5.512 1.343 2.220 0.697 0.523 0.750 4
7/8 14UNF G0764 G1764 G2764 H4 4.921 1.343 2.220 0.697 0.523 0.750 4
7/8 14UNF G0766 G1766 G2766 H6 4.921 1.343 2.220 0.697 0.523 0.750 4
1 8UNC G0786 G1786 G2786 H6 6.299 1.500 2.500 0.800 0.600 0.810 4
1 12UNF G0804 G1804 G2804 H4 5.512 1.500 2.500 0.800 0.600 0.810 4
1 12UNF G0806 G1806 G2806 H6 5.512 1.500 2.500 0.800 0.600 0.810 4
