Tapping Home > Tapping > UNIFED THREAD TAPS > SPIRAL POINTED TAPS

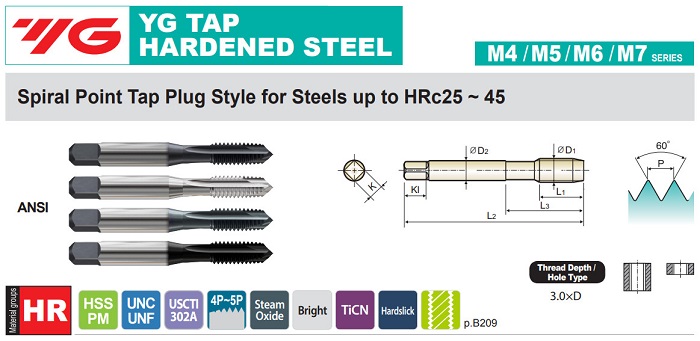

SPIRAL POINT TAPS PLUG STYLE STEELS up to 45HRc
View TAP SELECTOR / CUTTING DATA

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Steam Oxide Bright TiCN Hardslick L2 L1 L3 D2 K KI
#2 56UNC M4082 M5082 M6082 M7082 H2 1.752 0.256 0.433 0.141 0.110 0.190 2
#4 40UNC M4162 M5162 M6162 M7162 H2 1.874 0.335 0.563 0.141 0.110 0.190 2
#5 40UNC M4202 M5202 M6202 M7202 H2 1.937 0.374 0.626 0.141 0.110 0.190 3
#6 32UNC M4243 M5243 M6243 M7243 H3 2.000 0.413 0.689 0.141 0.110 0.190 3
#8 32UNC M4283 M5283 M6283 M7283 H3 2.126 0.453 0.752 0.168 0.131 0.250 3
#10 24UNC M4323 M5323 M6323 M7323 H3 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 32UNF M4343 M5343 M6343 M7343 H3 2.374 0.531 0.906 0.194 0.152 0.250 3
1/4 20UNC M4405 M5405 M6405 M7405 H5 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF M4424 M5424 M6424 M7424 H4 2.500 0.591 1.000 0.255 0.191 0.310 3
5/16 18UNC M4445 M5445 M6445 M7445 H5 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 24UNF M4464 M5464 M6464 M7464 H4 2.720 0.669 1.126 0.318 0.238 0.380 3
3/8 16UNC M4485 M5485 M6485 M7485 H5 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF M4504 M5504 M6504 M7504 H4 2.937 0.748 1.252 0.381 0.286 0.440 3
7/16 14UNC M4525 M5525 M6525 M7525 H5 3.157 0.866 1.437 0.323 0.242 0.410 3
7/16 20UNF M4545 M5545 M6545 M7545 H5 3.157 0.866 1.437 0.323 0.242 0.410 3
1/2 13UNC M4565 M5565 M6565 M7565 H5 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 20UNF M4585 M5585 M6585 M7585 H5 3.374 0.984 1.657 0.367 0.275 0.440 3
9/16 12UNC M4605 M5605 M6605 M7605 H5 3.594 0.984 1.657 0.429 0.322 0.500 3
9/16 18UNF M4625 M5625 M6625 M7625 H5 3.594 0.984 1.657 0.429 0.322 0.500 3
5/8 11UNC M4645 M5645 M6645 M7645 H5 3.811 1.083 1.811 0.480 0.360 0.560 3
5/8 18UNF M4665 M5665 M6665 M7665 H5 3.811 1.083 1.811 0.480 0.360 0.560 3
3/4 10UNC M4705 M5705 M6705 M7705 H5 4.252 1.201 2.000 0.590 0.442 0.690 3
3/4 16UNF M4725 M5725 M6725 M7725 H5 4.252 1.201 2.000 0.590 0.442 0.690 3
