Tapping Home > Tapping > UNIFED THREAD TAPS > SPIRAL POINTED TAPS

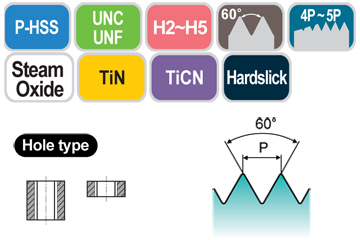

ANSI TITANIUM & NICKEL < 44Rc
View TAP SELECTOR / CUTTING DATA

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Steam Oxide Bright TiCN Hardslick L2 L1 L3 D2 K KI
#2 56UNC I3082 M8082 I5082 J6082 H2 1.752 0.256 0.433 0.141 0.110 0.190 2
#4 40UNC I3162 M8162 I5162 J6162 H2 1.874 0.335 0.563 0.141 0.110 0.190 2
#5 40UNC I3202 M8202 I5202 J6202 H2 1.937 0.374 0.626 0.141 0.110 0.190 3
#6 32UNC I3243 M8243 I5243 J6243 H3 2.000 0.413 0.689 0.141 0.110 0.190 3
#8 32UNC I3283 M8283 I5283 J6283 H3 2.126 0.453 0.752 0.168 0.131 0.250 3
#10 24UNC I3323 M8323 I5323 J6323 H3 2.374 0.531 0.906 0.194 0.152 0.250 3
#10 32UNF I3343 M8343 I5343 J6343 H3 2.374 0.531 0.906 0.194 0.152 0.250 3
1/4 20UNC I3403 M8403 I5403 J6403 H3 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 20UNC I3405 M8405 I5405 J6405 H5 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF I3423 M8423 I5423 J6423 H3 2.500 0.591 1.000 0.255 0.191 0.310 3
1/4 28UNF I3424 M8424 I5424 J6424 H4 2.500 0.591 1.000 0.255 0.191 0.310 3
5/16 18UNC I3443 M8443 I5443 J6443 H3 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 18UNC I3445 M8445 I5445 J6445 H5 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 24UNF I3463 M8463 I5463 J6463 H3 2.720 0.669 1.126 0.318 0.238 0.380 3
3/8 16UNC I3483 M8483 I5483 J6483 H3 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 16UNC I3485 M8485 I5485 J6485 H5 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF I3503 M8503 I5503 J6503 H3 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF I3504 M8504 I5504 J6504 H4 2.937 0.748 1.252 0.381 0.286 0.440 3
7/16 14UNC I3523 M8523 I5523 J6523 H3 3.157 0.866 1.437 0.323 0.242 0.410 3
7/16 14UNC I3525 M8525 I5525 J6525 H5 3.157 0.866 1.437 0.323 0.242 0.410 3
7/16 20UNF I3543 M8543 I5543 J6543 H3 3.157 0.866 1.437 0.323 0.242 0.410 3
7/16 20UNF I3545 M8545 I5545 J6545 H5 3.157 0.866 1.437 0.323 0.242 0.410 3
1/2 13UNC I3563 M8563 I5563 J6563 H3 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 13UNC I3565 M8565 I5565 J6565 H5 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 20UNF I3583 M8583 I5583 J6583 H3 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 20UNF I3585 M8585 I5585 J6585 H5 3.374 0.984 1.657 0.367 0.275 0.440 3
9/16 12UNC I3603 M8603 I5603 J6603 H3 3.594 0.984 1.657 0.429 0.322 0.500 3
9/16 12UNC I3605 M8605 I5605 J6605 H5 3.594 0.984 1.657 0.429 0.322 0.500 3
9/16 18UNF I3623 M8623 I5623 J6623 H3 3.594 0.984 1.657 0.429 0.322 0.500 3
9/16 18UNF I3625 M8625 I5625 J6625 H5 3.594 0.984 1.657 0.429 0.322 0.500 3
5/8 11UNC I3643 M8643 I5643 J6643 H3 3.811 1.083 1.811 0.480 0.360 0.560 3
5/8 11UNC I3645 M8645 I5645 J6645 H5 3.811 1.083 1.811 0.480 0.360 0.560 3
5/8 18UNF I3663 M8663 I5663 J6663 H3 3.811 1.083 1.811 0.480 0.360 0.560 3
5/8 18UNF I3665 M8665 I5665 J6665 H5 3.811 1.083 1.811 0.480 0.360 0.560 3
3/4 10UNC I3703 M8703 I5703 J6703 H3 4.252 1.201 2.000 0.590 0.442 0.690 3
3/4 10UNC I3705 M8705 I5705 J6705 H5 4.252 1.201 2.000 0.590 0.442 0.690 3
3/4 16UNF I3723 M8723 I5723 J6723 H3 4.252 1.201 2.000 0.590 0.442 0.690 3
3/4 16UNF I3725 M8725 I5725 J6725 H5 4.252 1.201 2.000 0.590 0.442 0.690 3
