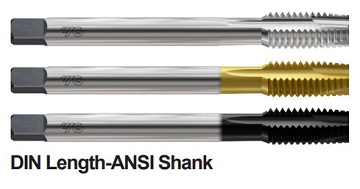

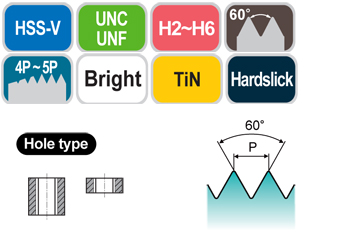

Spiral Point Tap Plug Style for General Purpose - L3 / L4 / L5 SERIES
View TAP SELECTOR / CUTTING DATA

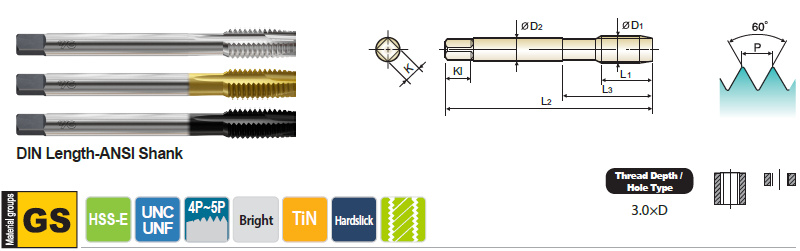

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bright TiN Hardslick L2 L1 L3 D2 K KI
#2 56UNC L3082 L4082 L5082 H2 1.752 0.437 0.650 0.141 0.110 0.190 2
#4 40UNC L3162 L4162 L5162 H2 1.874 0.311 0.563 0.141 0.110 0.190 2
#5 40UNC L3202 L4202 L5202 H2 1.937 0.311 0.626 0.141 0.110 0.190 3
#6 32UNC L3243 L4243 L5243 H3 2.000 0.374 0.689 0.141 0.110 0.190 3
#8 32UNC L3283 L4283 L5283 H3 2.126 0.374 0.752 0.168 0.131 0.250 3
#10 24UNC L3323 L4323 L5323 H3 2.374 0.500 0.906 0.194 0.152 0.250 3
#10 32UNC L3343 L4343 L5343 H3 2.374 0.500 0.906 0.194 0.152 0.250 3
1/4 20UNC L3403 L4403 L5403 H3 2.500 0.626 1.000 0.255 0.191 0.310 3
1/4 20UNC L3405 L4405 L5405 H5 2.500 0.626 1.000 0.255 0.191 0.310 3
1/4 28UNF L3423 L4423 L5423 H3 2.500 0.626 1.000 0.255 0.191 0.310 3
5/16 18UNC L3443 L4443 L5443 H3 2.720 0.689 1.126 0.318 0.238 0.380 3
5/16 18UNC L3445 L4445 L5445 H5 2.720 0.689 1.126 0.318 0.238 0.380 3
5/16 24UNF L3463 L4463 L5463 H3 2.720 0.689 1.126 0.318 0.238 0.380 3
3/8 16UNC L3483 L4483 L5483 H3 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 16UNC L3485 L4485 L5485 H5 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF L3503 L4503 L5503 H3 2.937 0.748 1.252 0.381 0.286 0.440 3
7/16 14UNC L3523 L4523 L5523 H3 3.157 0.874 1.437 0.323 0.242 0.410 3
7/16 14UNC L3525 L4525 L5525 H5 3.157 0.874 1.437 0.323 0.242 0.410 3
7/16 20UNF L3543 L4543 L5543 H3 3.157 0.874 1.437 0.323 0.242 0.410 3
7/16 20UNF L3545 L4545 L5545 H5 3.157 0.874 1.437 0.323 0.242 0.410 3
1/2 13UNC L3563 L4563 L5563 H3 3.374 0.937 1.594 0.367 0.275 0.440 3
1/2 13UNC L3565 L4565 L5565 H5 3.374 0.937 1.594 0.367 0.275 0.440 3
1/2 20UNF L3583 L4583 L5583 H3 3.374 0.937 1.594 0.367 0.275 0.440 3
1/2 20UNF L3585 L4585 L5585 H5 3.374 0.937 1.594 0.367 0.275 0.440 3
9/16 12UNC L3605 L4605 L5605 H5 3.594 1.000 1.657 0.429 0.322 0.500 3
9/16 18UNF L3625 L4625 L5625 H5 3.594 1.000 1.657 0.429 0.322 0.500 3
5/8 11UNC L3643 L4643 L5643 H3 3.811 1.094 1.811 0.480 0.360 0.560 3
5/8 11UNC L3645 L4645 L5645 H5 3.811 1.094 1.811 0.480 0.360 0.560 3
3/4 10UNC L3703 L4703 L5703 H3 4.252 1.220 2.000 0.590 0.442 0.690 3
3/4 10UNC L3705 L4705 L5705 H5 4.252 1.220 2.000 0.590 0.442 0.690 3
3/4 16UNF L3725 L4725 L5725 H5 4.252 1.220 2.000 0.590 0.442 0.690 3
7/8 9UNC L3746 L4746 L5746 H6 4.689 1.343 2.220 0.697 0.523 0.750 3
7/8 14UNF L3766 L4766 L5766 H6 4.689 1.343 2.220 0.697 0.523 0.750 3
1 8UNC L3786 L4786 L5786 H6 5.126 1.500 2.500 0.800 0.600 0.810 3
1 12UNF L3806 L4806 L5806 H6 5.126 1.500 2.500 0.800 0.600 0.810 3
