Tapping Home > Tapping > UNIFED THREAD TAPS > SPIRAL POINTED TAPS

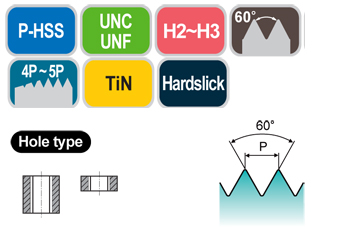

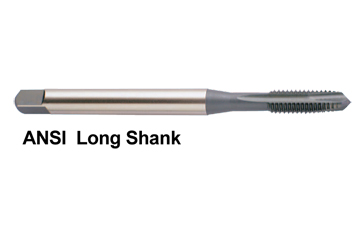

Extended Length Spiral Point Tap Plug Style for Stainless Steels - M0 / M2 SERIES
View TAP SELECTOR / CUTTING DATA

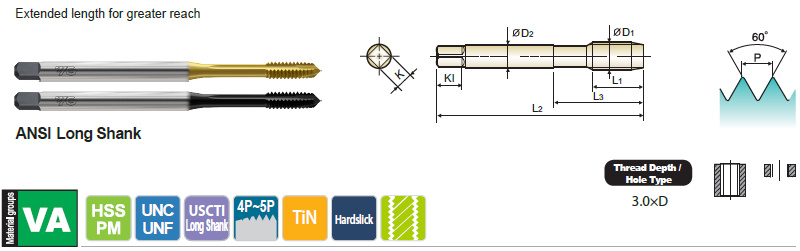

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 TiN 4 OAL Hardslick 4 OAL L2 L1 L3 D2 K Kl
#4 40UNC M0162 M2162 H2 4.000 0.335 0.846 0.141 0.110 0.190 2
#6 32UNC M0243 M2243 H3 4.000 0.413 1.024 0.141 0.110 0.190 2
#8 32UNC M0283 M2283 H3 4.000 0.453 1.122 0.168 0.131 0.250 3
#10 24UNC M0323 M2323 H3 4.000 0.531 1.319 0.194 0.152 0.250 3
#10 32UNF M0343 M2343 H3 4.000 0.531 1.319 0.194 0.152 0.250 3
1/4 20UNC M0403 M2403 H3 4.000 0.591 1.496 0.255 0.191 0.310 3
