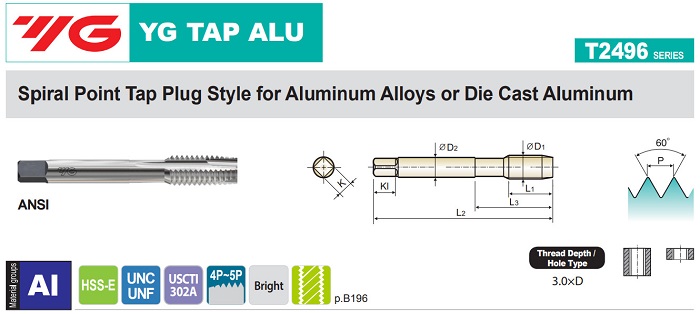

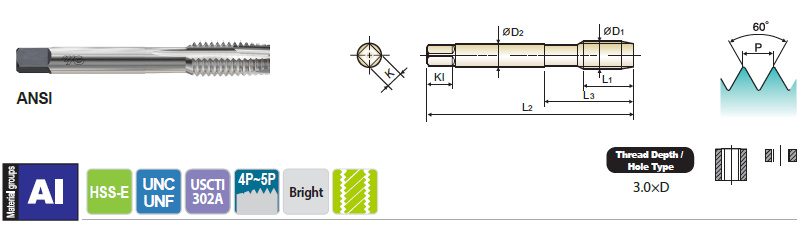

SPIRAL POINT TAPS PLUG STYLE for ALUMINUM ALLOY or DIE CAST ALUMINUM

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bright L2 L1 L3 D2 K Kl
#4 40UNC T2496162 H2 1.874 0.335 0.563 0.141 0.110 0.190 2
#4 40UNC T2496163 H3 1.874 0.335 0.563 0.141 0.110 0.190 2
#6 32UNC T2496242 H2 2.000 0.413 0.689 0.141 0.110 0.190 2
#6 32UNC T2496243 H3 2.000 0.413 0.689 0.141 0.110 0.190 2
#8 32UNC T2496282 H2 2.126 0.453 0.752 0.168 0.131 0.250 2
#8 32UNC T2496283 H3 2.126 0.453 0.752 0.168 0.131 0.250 2
#10 24UNC T2496323 H3 2.374 0.531 0.906 0.194 0.152 0.250 2
#10 32UNF T2496342 H2 2.374 0.531 0.906 0.194 0.152 0.250 2
#10 32UNF T2496343 H3 2.374 0.531 0.906 0.194 0.152 0.250 2
#10 32UNF T2496345 H5 2.374 0.531 0.906 0.194 0.152 0.250 2
1/4 20UNC T2496403 H3 2.500 0.591 1.000 0.255 0.191 0.310 2
1/4 20UNC T2496405 H5 2.500 0.591 1.000 0.255 0.191 0.310 2
1/4 28UNF T2496423 H3 2.500 0.591 1.000 0.255 0.191 0.310 2
5/16 18UNC T2496443 H3 2.720 0.669 1.126 0.318 0.238 0.380 2
5/16 18UNC T2496445 H5 2.720 0.669 1.126 0.318 0.238 0.380 2
5/16 24UNF T2496463 H3 2.720 0.669 1.126 0.318 0.238 0.380 2
5/16 24UNF T2496465 H5 2.720 0.669 1.126 0.318 0.238 0.380 2
3/8 16UNC T2496483 H3 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 16UNC T2496485 H5 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF T2496503 H3 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 24UNF T2496505 H5 2.937 0.748 1.252 0.381 0.286 0.440 3
1/2 13UNC T2496563 H3 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 13UNC T2496565 H5 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 20UNF T2496583 H3 3.374 0.984 1.657 0.367 0.275 0.440 3
5/8 11UNC T2496643 H3 3.811 1.083 1.811 0.480 0.360 0.560 3
5/8 18UNF T2496663 H3 3.811 1.083 1.811 0.480 0.360 0.560 3
3/4 10UNC T2496703 H3 4.252 1.201 2.000 0.590 0.442 0.690 3
3/4 16UNF T2496723 H3 4.252 1.201 2.000 0.590 0.442 0.690 3
7/8 9UNC T2496744 H4 4.689 1.339 2.220 0.697 0.523 0.750 3
7/8 14UNF T2496764 H4 4.689 1.339 2.220 0.697 0.523 0.750 3
1 8UNC T2496784 H4 5.126 1.496 2.500 0.800 0.600 0.810 3
