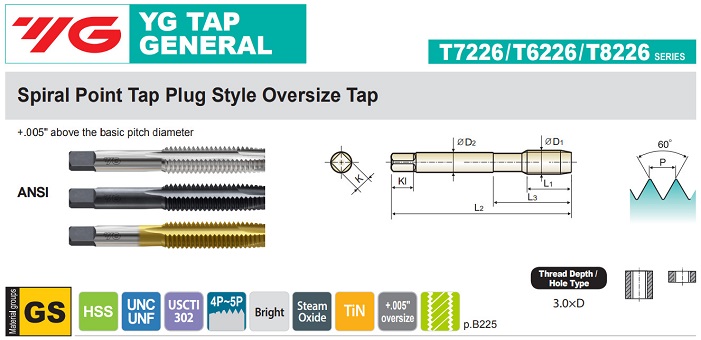

STANDARD TAPS: SPIRAL POINT PLUG STYLE OVERSIZE TAP

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bright Steam Oxide TiN L2 L1 L3 D2 K KI
#6 32UNC T7226240 T6226240 T8226240 +.005" 2.000 0.689 0.965 0.141 0.110 0.190 2
#8 32UNC T7226280 T6226280 T8226280 +.005" 2.126 0.752 1.047 0.168 0.131 0.250 2
#10 24UNC T7226320 T6226320 T8226320 +.005" 2.374 0.906 1.220 0.194 0.152 0.250 2
#10 32UNF T7226340 T6226340 T8226340 +.005" 2.374 0.906 1.220 0.194 0.152 0.250 2
1/4 20UNC T7226400 T6226400 T8226400 +.005" 2.500 1.000 1.354 0.255 0.191 0.310 2
1/4 28UNF T7226420 T6226420 T8226420 +.005" 2.500 1.000 1.354 0.255 0.191 0.310 2
5/16 18UNC T7226440 T6226440 T8226440 +.005" 2.720 1.126 1.500 0.318 0.238 0.380 2
5/16 24UNF T7226460 T6226460 T8226460 +.005" 2.720 1.126 1.500 0.318 0.238 0.380 2
3/8 16UNC T7226480 T6226480 T8226480 +.005" 2.937 1.252 1.646 0.381 0.286 0.440 3
3/8 24UNF T7226500 T6226500 T8226500 +.005" 2.937 1.252 1.646 0.381 0.286 0.440 3
7/16 14UNC T7226520 T6226520 T8226520 +.005" 3.157 1.437 - 0.323 0.242 0.410 3
7/16 20UNF T7226540 T6226540 T8226540 +.005" 3.157 1.437 - 0.323 0.242 0.410 3
1/2 13UNC T7226560 T6226560 T8226560 +.005" 3.374 1.657 - 0.367 0.275 0.440 3
1/2 20UNF T7226580 T6226580 T8226580 +.005" 3.374 1.657 - 0.367 0.275 0.440 3
5/8 11UNC T7226640 T6226640 T8226640 +.005" 3.811 1.811 - 0.480 0.360 0.560 3
3/4 10UNC T7226700 T6226700 T8226700 +.005" 4.252 2.000 - 0.590 0.442 0.690 3
