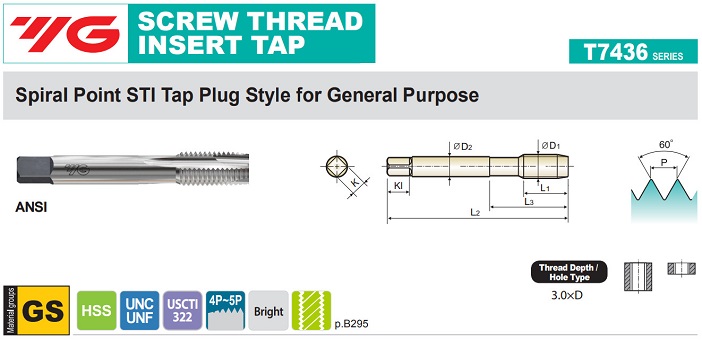

SPIRAL POINT TAPS SCREW THREAD INSERT for GENERAL PURPOSE

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bright L2 L1 L3 D2 K Kl
#2 56UNC T7436082 H2 1.874 0.335 0.563 0.141 0.110 0.190 2
#3 48UNC T7436122 H2 1.937 0.374 0.626 0.141 0.110 0.190 2
#4 40UNC T7436161 H1 2.000 0.413 0.689 0.141 0.110 0.190 2
#4 40UNC T7436162 H2 2.000 0.413 0.689 0.141 0.110 0.190 2
#4 48UNF T7436182 H2 2.000 0.413 0.689 0.141 0.110 0.190 2
#5 40UNC T7436202 H2 2.126 0.453 0.752 0.168 0.131 0.250 2
#6 32UNC T7436242 H2 2.374 0.531 0.906 0.194 0.152 0.250 2
#6 32UNC T7436243 H3 2.374 0.531 0.906 0.194 0.152 0.250 2
#6 40UNF T7436262 H2 2.126 0.453 0.752 0.168 0.131 0.250 2
#8 32UNC T7436282 H2 2.374 0.571 0.906 0.220 0.165 0.280 2
#8 32UNC T7436283 H3 2.374 0.571 0.906 0.220 0.165 0.280 2
#8 36UNF T7436302 H2 2.374 0.571 0.906 0.220 0.165 0.280 2
#10 24UNC T7436322 H2 2.500 0.591 1.000 0.255 0.191 0.310 2
#10 24UNC T7436323 H3 2.500 0.591 1.000 0.255 0.191 0.310 2
#10 32UNF T7436342 H2 2.500 0.591 1.000 0.255 0.191 0.310 2
#10 32UNF T7436343 H3 2.500 0.591 1.000 0.255 0.191 0.310 2
1/4 20UNC T7436402 H2 2.720 0.669 1.126 0.318 0.238 0.380 3
1/4 20UNC T7436403 H3 2.720 0.669 1.126 0.318 0.238 0.380 3
1/4 28UNF T7436422 H2 2.720 0.669 1.126 0.318 0.238 0.380 3
1/4 28UNF T7436423 H3 2.720 0.669 1.126 0.318 0.238 0.380 3
5/16 18UNC T7436443 H3 2.937 0.748 1.252 0.381 0.286 0.440 3
5/16 18UNC T7436444 H4 2.937 0.748 1.252 0.381 0.286 0.440 3
5/16 24UNF T7436462 H2 2.937 0.748 1.252 0.381 0.286 0.440 3
5/16 24UNF T7436463 H3 2.937 0.748 1.252 0.381 0.286 0.440 3
3/8 16UNC T7436483 H3 3.374 0.984 1.657 0.367 0.275 0.440 3
3/8 16UNC T7436484 H4 3.374 0.984 1.657 0.367 0.275 0.440 3
3/8 24UNF T7436502 H2 3.157 0.866 1.437 0.323 0.242 0.410 3
3/8 24UNF T7436503 H3 3.157 0.866 1.437 0.323 0.242 0.410 3
7/16 14UNC T7436523 H3 3.594 0.984 1.657 0.429 0.322 0.500 3
7/16 14UNC T7436524 H4 3.594 0.984 1.657 0.429 0.322 0.500 3
7/16 20UNF T7436543 H3 3.374 0.984 1.657 0.367 0.275 0.440 3
7/16 20UNF T7436544 H4 3.374 0.984 1.657 0.367 0.275 0.440 3
1/2 13UNC T7436563 H3 3.811 1.083 1.811 0.480 0.360 0.560 4
1/2 13UNC T7436564 H4 3.811 1.083 1.811 0.480 0.360 0.560 4
1/2 20UNF T7436583 H3 3.594 0.984 1.657 0.429 0.322 0.500 4
1/2 20UNF T7436584 H4 3.594 0.984 1.657 0.429 0.322 0.500 4
