Tapping Home > Tapping > UNIFED THREAD TAPS > TAPER PIPE TAPS

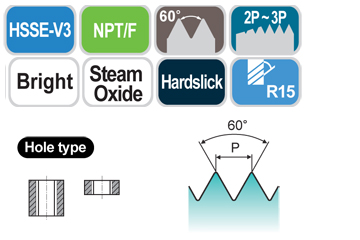

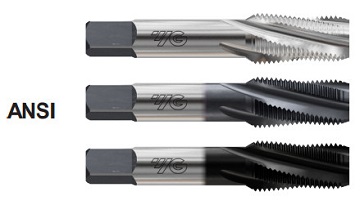

ANSI 15 SPIRAL FLUTED TAPS STEELS & STAINLESS STEELS
View TAP SELECTOR / CUTTING DATA

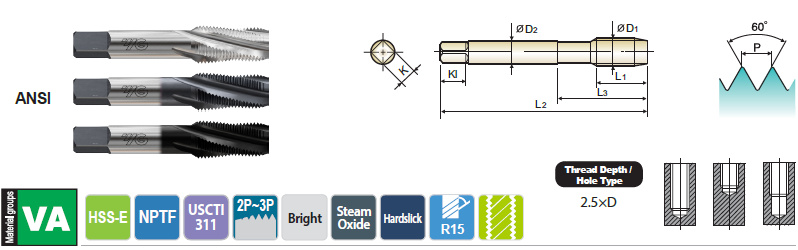

Size T.P.I EDP No. Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bright Steam Oxide Hardslick L2 L1 L3 D2 K KI
NPTF1/16 27 Q1020 Q0020 Q6020 2.130 0.689 - 0.312 0.234 0.380 4
NPTF1/8 27 Q1200 Q0200 Q6200 2.130 0.736 0.906 0.437 0.328 0.380 4
NPTF1/8 27 Q1210 Q0210 Q6210 2.130 0.748 - 0.312 0.234 0.380 4
NPTF1/4 18 Q1400 Q0400 Q6400 2.440 1.063 1.220 0.562 0.421 0.440 4
NPTF3/8 18 Q1480 Q0480 Q6480 2.560 1.063 1.220 0.700 0.531 0.500 4
NPTF1/2 14 Q1560 Q0560 Q6560 3.130 1.378 - 0.687 0.515 0.630 4
NPTF3/4 14 Q1700 Q0700 Q6700 3.250 1.378 - 0.906 0.679 0.690 4
NPTF1 11-1/2 Q1780 Q0780 Q6780 3.750 1.752 - 1.125 0.843 0.810 4
NPTF1-1/4 11-1/2 Q1860 Q0860 Q6860 4.000 1.752 - 1.312 0.984 0.940 5
NPTF1-1/2 11-1/2 Q1960 Q0960 Q6960 4.250 1.752 - 1.500 1.125 1.000 7
NPTF2 11-1/2 Q1D20 Q0D20 Q6D20 4.508 1.752 - 1.875 1.406 1.130 7
