Tapping Home > Tapping > UNIFED THREAD TAPS > TAPER PIPE TAPS

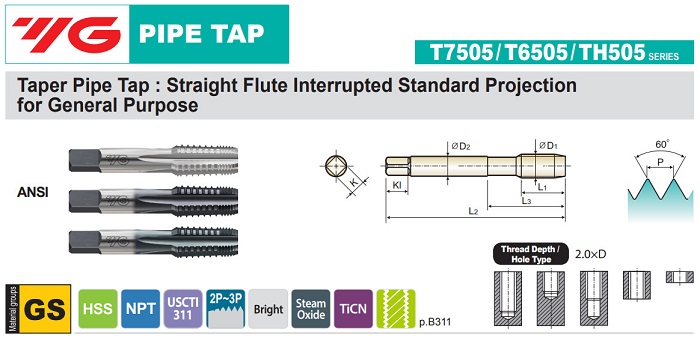

Taper Pipe Tap : Straight Flute Interrupted Standard Projection for General Purpose - T7505 / T6505 / TH505 SERIES

Size T.P.I EDP No. Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bright Steam Oxide TiCN L2 L1 L3 D2 K KI
NPT1/8 27 T7505200 T6505200 TH505200 2.130 0.736 0.906 0.437 0.328 0.380 5
NPT1/8 27 T7505210 T6505210 TH505210 2.130 0.748 - 0.312 0.234 0.380 5
NPT1/4 18 T7505400 T6505400 TH505400 2.440 1.063 1.220 0.562 0.421 0.440 5
NPT3/8 18 T7505480 T6505480 TH505480 2.560 1.063 1.220 0.700 0.531 0.500 5
NPT1/2 14 T7505560 T6505560 TH505560 3.130 1.378 - 0.687 0.515 0.630 5
NPT3/4 14 T7505700 T6505700 TH505700 3.250 1.378 - 0.906 0.679 0.690 5
NPT1 11-1/2 T7505780 T6505780 TH505780 3.750 1.752 - 1.125 0.843 0.810 5
