Tapping Home > Tapping > UNIFED THREAD TAPS > FORMING TAPS

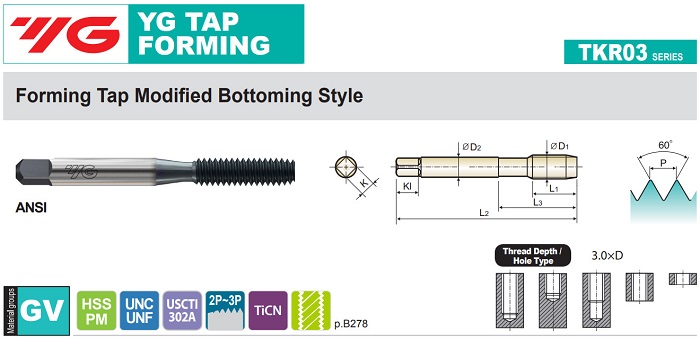

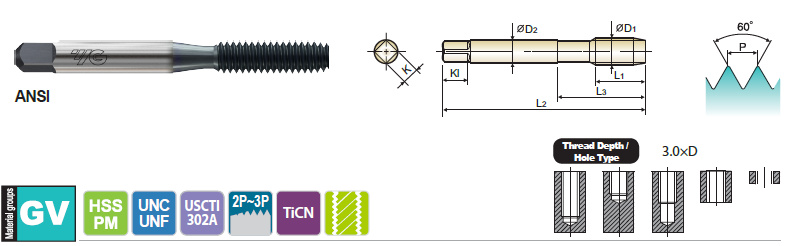

FORMING TAPS BOTTOMING STYLE

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Lobe
Class of fit
D1 2B (TiCN) L2 L1 L3 D2 K Kl
#4 40UNC TKR03163 H3 1.874 0.563 0.799 0.141 0.110 0.190 4
#4 40UNC TKR03165 H5 1.937 0.626 0.882 0.141 0.110 0.190 4
#5 40UNC TKR03203 H3 2.000 0.480 0.689 0.168 0.110 0.190 4
#5 40UNC TKR03205 H5 2.126 0.500 0.752 0.168 0.131 0.250 4
#6 32UNC TKR03243 H3 2.374 0.630 0.906 0.194 0.152 0.250 4
#6 32UNC TKR03245 H5 2.374 0.630 0.906 0.194 0.152 0.250 4
#8 32UNC TKR03283 H3 2.500 0.858 1.000 0.255 0.191 0.310 4
#8 32UNC TKR03285 H5 2.500 0.858 1.000 0.255 0.191 0.310 4
#10 24UNC TKR03324 H4 2.720 0.929 1.126 0.318 0.238 0.380 4
#10 24UNC TKR03326 H6 2.720 0.929 1.126 0.318 0.238 0.380 4
#10 32UNF TKR03344 H4 2.937 0.980 1.252 0.381 0.286 0.440 4
#10 32UNF TKR03346 H6 2.937 0.980 1.252 0.381 0.286 0.440 4
1/4 20UNC TKR03404 H4 1.874 0.563 0.799 0.141 0.110 0.190 4
1/4 20UNC TKR03406 H6 1.937 0.626 0.882 0.141 0.110 0.190 4
1/4 28UNF TKR03424 H4 2.000 0.480 0.689 0.168 0.110 0.190 4
1/4 28UNF TKR03426 H6 2.126 0.500 0.752 0.168 0.131 0.250 4
5/16 18UNC TKR03445 H5 2.374 0.630 0.906 0.194 0.152 0.250 4
5/16 18UNC TKR03447 H7 2.374 0.630 0.906 0.194 0.152 0.250 4
5/16 24UNF TKR03465 H5 2.500 0.858 1.000 0.255 0.191 0.310 4
5/16 24UNF TKR03467 H7 2.500 0.858 1.000 0.255 0.191 0.310 4
3/8 16UNC TKR03485 H5 2.720 0.929 1.126 0.318 0.238 0.380 4
3/8 16UNC TKR03487 H7 2.720 0.929 1.126 0.318 0.238 0.380 4
3/8 24UNF TKR03505 H5 2.937 0.980 1.252 0.381 0.286 0.440 4
3/8 24UNF TKR03507 H7 2.937 0.980 1.252 0.381 0.286 0.440 4
