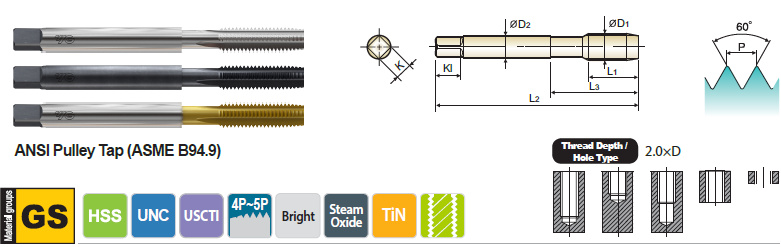

Straight Flute Pulley Tap, 6" Long Length Plug Style - T7616 / T6616 / T8616 SERIES

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bright Steam Oxide TiN L2 L1 L3 D2 K KI
1/4 20UNC T7616403 T6616403 T8616403 H3 6.000 1.000 1.575 0.255 0.191 0.310 4
5/16 18UNC T7616443 T6616443 T8616443 H3 6.000 1.126 1.850 0.318 0.238 0.380 4
3/8 16UNC T7616483 T6616483 T8616483 H3 6.000 1.252 2.028 0.381 0.286 0.440 4
7/16 14UNC T7616523 T6616523 T8616523 H3 6.000 1.437 1.882 0.440 0.333 0.500 4
1/2 13UNC T7616563 T6616563 T8616563 H3 6.000 1.657 2.520 0.507 0.380 0.560 4
5/8 11UNC T7616643 T6616643 T8616643 H3 6.000 1.811 2.776 0.633 0.475 0.690 4
