Tapping Home > Tapping > UNIFED THREAD TAPS > INTERRUPTED THREAD PIPE

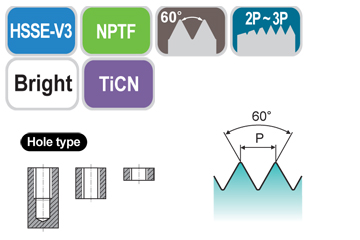

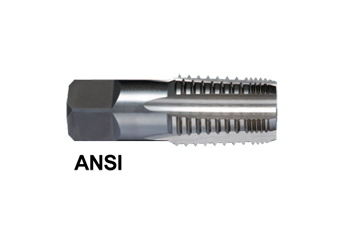

Taper Pipe Tap : Straight Flute Interrupted Thread Standard Projection for Cast Iron & Steels - S1 / S2 SERIES

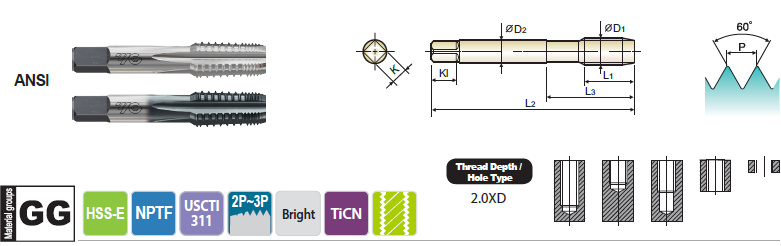

Size T.P.I EDP No. Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Bright TiCN L2 L1 L3 D2 K KI
NPTF1/16 27 S1020 S2020 2.130 0.689 - 0.312 0.234 0.380 5
NPTF1/8 27 S1200 S2200 2.130 0.736 0.906 0.437 0.328 0.380 5
NPTF1/8 27 S1210 S2210 2.130 0.748 - 0.312 0.234 0.380 5
NPTF1/4 18 S1400 S2400 2.440 1.063 1.220 0.562 0.421 0.440 5
NPTF3/8 18 S1480 S2480 2.560 1.063 1.220 0.700 0.531 0.500 5
NPTF1/2 14 S1560 S2560 3.130 1.378 - 0.687 0.515 0.630 5
NPTF3/4 14 S1700 S2700 3.250 1.378 - 0.906 0.679 0.690 5
NPTF1 11-1/2 S1780 S2780 3.750 1.752 - 1.125 0.843 0.810 5
