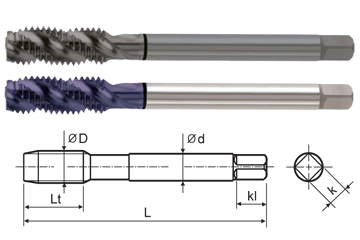

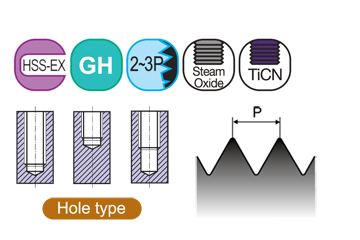

SPIRAL FLUTE COMBO TAP FOR MULTI-PURPOSE ANSI SHANK/ DIN LENGTH

Size T.P.I EDP No. Limit Overall Length Thread Length Neck Length Shank Diameter Square Size Square Length No. of Flute
D1 Steam Oxide TiCN L2 L1 L3 D2 K Kl
#2 56UNC T1082S T1082C H2 1.772 0.157 0.433 0.141 0.110 0.190 2
#3 48UNC T1122S T1122C H2 1.969 0.197 0.492 0.141 0.110 0.190 2
#4 40UNC T1162S T1162C H2 2.205 0.236 0.563 0.141 0.110 0.190 2
#4 48UNF T1182S T1182C H2 2.205 0.236 0.563 0.141 0.110 0.190 2
#5 40UNC T1202S T1202C H2 2.205 0.236 0.626 0.141 0.110 0.190 3
#6 32UNC T1243S T1243C H3 2.205 0.276 0.689 0.141 0.110 0.190 3
#6 40UNF T1262S T1262C H2 2.205 0.276 0.689 0.141 0.110 0.190 3
#8 32UNC T1283S T1283C H3 2.480 0.276 0.752 0.168 0.131 0.250 3
#10 24UNC T1323S T1323C H3 2.756 0.354 0.906 0.194 0.152 0.250 3
#10 32UNF T1343S T1343C H3 2.756 0.276 0.906 0.194 0.152 0.250 3
#12 24UNC T1363S T1363C H3 3.150 0.354 0.906 0.220 0.165 0.280 3
#12 28UNF T1383S T1383C H3 3.150 0.276 0.906 0.220 0.165 0.280 3
1/4 20UNC T1405S T1405C H5 3.150 0.433 1.000 0.255 0.191 0.310 3
1/4 28UNF T1424S T1424C H4 3.150 0.354 1.000 0.255 0.191 0.310 3
5/16 18UNC T1445S T1445C H5 3.543 0.472 1.126 0.318 0.238 0.380 3
5/16 24UNF T1464S T1464C H4 3.543 0.394 1.126 0.318 0.238 0.380 3
3/8 16UNC T1485S T1485C H5 3.937 0.551 1.252 0.381 0.286 0.440 3
3/8 24UNF T1504S T1504C H4 3.937 0.394 1.252 0.381 0.286 0.440 3
7/16 14UNC T1525S T1525C H5 3.937 0.591 1.850 0.323 0.242 0.410 3
7/16 20UNF T1545S T1545C H5 3.937 0.472 1.850 0.323 0.242 0.410 3
1/2 13UNC T1565S T1565C H5 4.331 0.630 2.067 0.367 0.275 0.440 3
1/2 20UNF T1585S T1585C H5 3.937 0.472 2.067 0.367 0.275 0.440 3
9/16 12UNC T1605S T1605C H5 4.331 0.709 2.067 0.429 0.322 0.500 3
9/16 18UNF T1625S T1625C H5 3.937 0.512 2.067 0.429 0.322 0.500 3
5/8 11UNC T1645S T1645C H5 4.331 0.748 2.205 0.480 0.360 0.560 4
5/8 18UNF T1665S T1665C H5 3.937 0.512 2.205 0.480 0.360 0.560 4
3/4 10UNC T1705S T1705C H5 4.921 0.827 2.480 0.590 0.442 0.690 4
3/4 16UNF T1725S T1725C H5 4.331 0.591 2.480 0.590 0.442 0.690 4
7/8 9UNC T1746S T1746C H6 5.512 0.827 2.815 0.697 0.523 0.750 4
7/8 14UNF T1766S T1766C H6 4.921 0.709 2.815 0.697 0.523 0.750 4
1 8UNC T1786S T1786C H6 6.299 0.984 3.091 0.800 0.600 0.810 4
1 12UNF T1806S T1806C H6 5.512 0.709 3.091 0.800 0.600 0.810 4
