Rotary Tooling

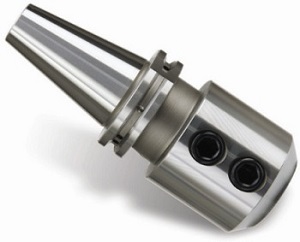

END MILL HOLDERS HIGH BALANCED SERIES

HIGH BALANCED STUB END MILL HOLDER

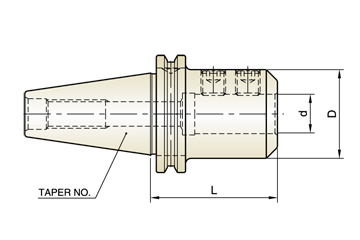

EDP No. Type Taper No. d L D
AK206B25CAT 40-EMH1/2-1.75400.5001.751.25
AK208B25CAT 40-EMH5/8-1.75400.6251.751.50
AK210B25CAT 40-EMH3/4-1.75400.7501.751.75
AK214B25CAT 40-EMH 1" -1.75401.0001.751.75
AK217B25CAT 40-EMH1*1/4-2.00401.2502.002.25

HIGH BALANCED STANDARD END MILL HOLDER
EDP No. Type Taper No. d L D
AK000B25CAT 40-EMH1/8-2.50400.1252.500.69
AK001B25CAT 40-EMH3/16-2.50400.1872.500.69
AK002B25CAT 40-EMH1/4-2.50400.2502.500.78
AK003B25CAT 40-EMH5/16-2.50400.3122.500.88
AK004B25CAT 40-EMH3/8-2.50400.3752.501.00
AK005B25CAT 40-EMH7/16-2.50400.4372.501.13
AK006B25CAT 40-EMH1/2-2.63400.5002.631.25
AK008B25CAT 40-EMH5/8-3.75400.6253.751.50
AK010B25CAT 40-EMH3/4-3.75400.7503.751.75
AK012B25CAT 40-EMH7/8-4.00400.8754.001.88
AK014B25CAT 40-EMH 1"-4.00401.0004.002.00
AK017B25CAT 40-EMH1*1/4-4.25401.2504.252.50
AK021B25CAT 40-EMH1*1/2-4.63401.5004.632.50

HIGH BALANCED EXTENDED END MILL HOLDER
EDP No. Type Taper No. d L D
AK104B25CAT 40-EMH3/8-4.50400.3754.501.00
AK106B25CAT 40-EMH1/2-4.63400.5004.631.25
AK108B25CAT 40-EMH5/8-5.75400.6255.751.50
AK110B25CAT 40-EMH3/4-5.75400.7505.751.75
AK112B25CAT 40-EMH7/8-6.00400.8756.001.88
AK114B25CAT 40-EMH 1"-6.00401.0006.002.00
AK117B25CAT 40-EMH1*1/4-6.25401.2506.252.50
AK121B25CAT 40-EMH1*1/2-6.63401.5006.632.50
