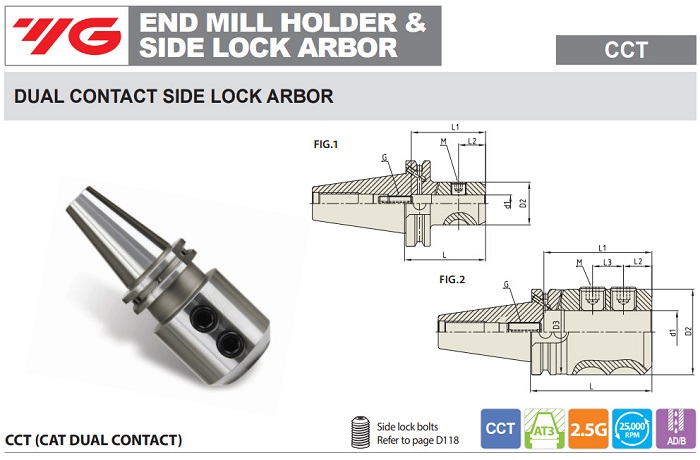

END MILL HOLDER DUAL CONTACT CAT - CCT
|
|
|
|
|
|
|
|
 DUAL CONTACT SIDE LOCK ARBOR CCT |
| TAPER No. |
MODEL No. |
d1 |
D1 |
L |
FIG |
EDP No. |
| CCT40 | CCT40AD/B - SLA1/4 - 2.36 | 0.250 | 0.780 | 2.360 | 1 | AB020 |
| CCT40AD/B - SLA5/16 - 2.36 | 0.313 | 0.880 | 2.360 | | AB022 |
| CCT40AD/B - SLA3/8 - 2.36 | 0.375 | 1.000 | 2.360 | 2 | AB024 |
| CCT40AD/B - SLA1/2 - 2.36 | 0.500 | 1.250 | 2.360 | | AB026 |
| CCT40AD/B - SLA5/8 - 3.54 | 0.625 | 1.500 | 3.540 | | AB028 |
| CCT40AD/B - SLA3/4 - 3.54 | 0.750 | 1.750 | 3.540 | | AB030 |
| CCT40AD/B - SLA1 - 3.54 | 1.000 | 2.000 | 3.540 | | AB032 |
| CCT40AD/B - SLA1 1/4- 3.54 | 1.250 | 2.500 | 3.540 | | AB034 |
| CCT50 | CCT50AD/B - SLA1/4 - 3.54 | 0.250 | 0.780 | 3.540 | 1 | AC020 |
| CCT50AD/B - SLA5/16 - 3.54 | 0.313 | 0.880 | 3.540 | | AC022 |
| CCT50AD/B - SLA3/8 - 3.54 | 0.375 | 1.000 | 3.540 | 2 | AC024 |
| CCT50AD/B - SLA1/2 - 3.54 | 0.500 | 1.250 | 3.540 | | AC026 |
| CCT50AD/B - SLA5/8 - 4.13 | 0.625 | 1.500 | 4.130 | | AC028 |
| CCT50AD/B - SLA3/4 - 4.13 | 0.750 | 1.750 | 4.130 | | AC030 |
| CCT50AD/B - SLA1 - 4.13 | 1.000 | 2.000 | 4.130 | | AC032 |
| CCT50AD/B - SLA1 1/4 - 4.13 | 1.250 | 2.500 | 4.130 | | AC034 |
|
|
 |
|
