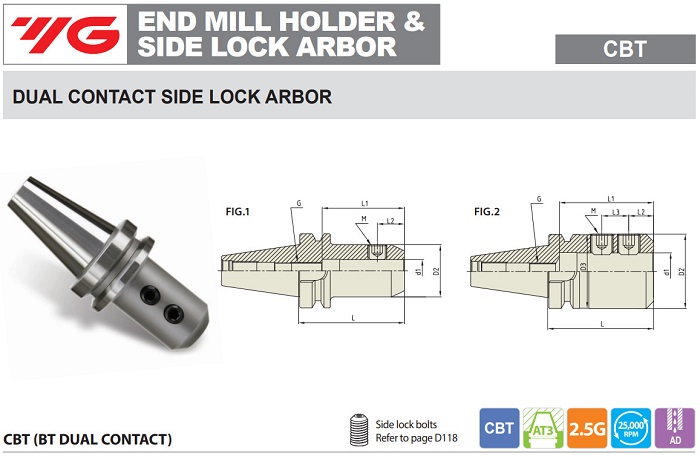

END MILL HOLDER DUAL CONTACT BT - CBT
|
|
|
|
|
|
|
|
 CBT(BT DUAL CONTACT) |
| TAPER No. |
MODEL No. |
d1 |
D1 |
L |
FIG |
EDP No. |
| 30 | CBT30 - SLA1/4-2.36 | 0.250 | 0.780 | 2.360 | 1 | AD020 |
| CBT30 - SLA5/16-2.36 | 0.313 | 0.880 | 2.360 | | AD022 |
| CBT30 - SLA3/8-2.36 | 0.375 | 1.000 | 2.360 | 2 | AD024 |
| CBT30 - SLA1/2-2.36 | 0.500 | 1.250 | 2.360 | | AD026 |
| CBT30 - SLA5/8-2.95 | 0.625 | 1.500 | 2.950 | | AD028 |
| CBT30 - SLA3/4-2.95 | 0.750 | 1.750 | 2.950 | | AD030 |
| CBT30 - SLA1-2.95 | 1.000 | 2.000 | 2.950 | | AD032 |
| 40 | CBT40 - SLA1/4-2.36 | 0.250 | 0.780 | 2.950 | 1 | AE020 |
| CBT40 - SLA5/16-2.36 | 0.313 | 0.880 | 2.950 | | AE022 |
| CBT40 - SLA3/8-2.36 | 0.375 | 1.000 | 2.950 | 2 | AE024 |
| CBT40 - SLA1/2-2.36 | 0.500 | 1.250 | 2.950 | | AE026 |
| CBT40 - SLA5/8-3.54 | 0.625 | 1.500 | 3.540 | | AE028 |
| CBT40 - SLA3/4-3.54 | 0.750 | 1.750 | 3.540 | | AE030 |
| CBT40 - SLA1-3.54 | 1.000 | 2.000 | 3.540 | | AE032 |
| CBT40 - SLA1-1/4-3.54 | 1.250 | 2.500 | 3.540 | | AE034 |
|
|
 |
|
