Milling Home >

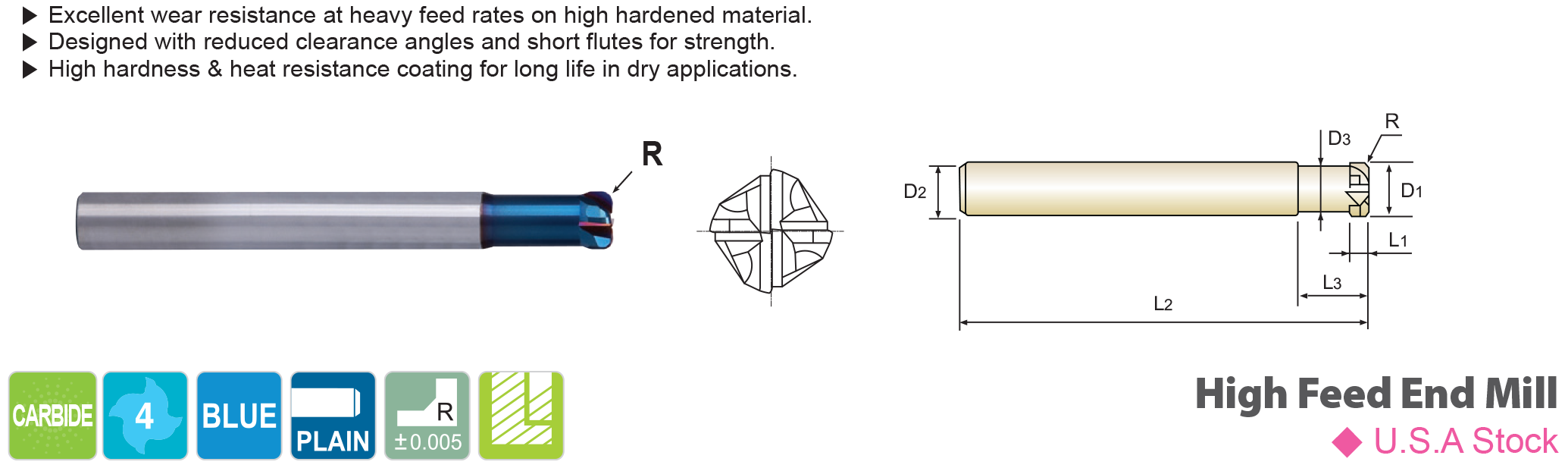

4 Flute High Feed (METRIC)

EDP No. Cutting Diameter
D		 Corner Radius
R		 Shank Diameter
d		 Neck Diameter
d2		 Length of Cut
Lc		 Effective Length
L1		 OAL
G859020 2.0 R0.5 6 1.8 1 6 50
G854020 2.0 R0.5 6 1.8 1 6 70
G859030 3.0 R0.5 6 2.8 1.2 8 50
G854030 3.0 R0.5 6 2.8 1.2 8 70
G859040 4.0 R0.5 6 3.8 1.5 10 50
G854040 4.0 R0.5 6 3.8 1.5 10 70
G854050 5.0 R1.0 6 4.6 2 10 70
G859060 6.0 R0.5 6 5.4 2.5 12 60
G854060 6.0 R0.5 6 5.4 2.5 12 90
G859061 6.0 R1.0 6 5.4 2.5 12 60
G854061 6.0 R1.0 6 5.4 2.5 12 90
G854062 6.0 R1.5 6 5.4 2.5 12 90
G859081 8.0 R1.0 8 7.2 3.5 16 60
G854081 8.0 R1.0 8 7.2 3.5 16 100
G859082 8.0 R2.0 8 7.2 3.5 16 60
G854082 8.0 R2.0 8 7.2 3.5 16 100
G859101 10.0 R1.0 10 9 4 20 70
G854101 10.0 R1.0 10 9 4 20 100
G859102 10.0 R2.0 10 9 4 20 70
G854102 10.0 R2.0 10 9 4 20 100
G859122 12.0 R2.0 12 11 5 25 80
G854122 12.0 R2.0 12 11 5 25 110
G859123 12.0 R3.0 12 11 5 25 80
G854123 12.0 R3.0 12 11 5 25 110
G859163 16.0 R3.0 16 15 6.5 30 90
G854163 16.0 R3.0 16 15 6.5 30 130
