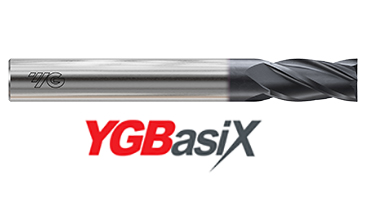

YGBasix END MILLS 4FL SQ. END LONG - G9H92/E5H92

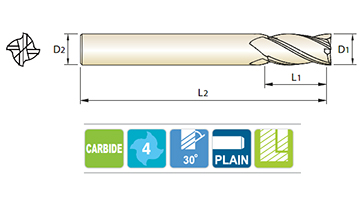

EDP No. Mill Diameter Shank Diameter Length of Cut Overall Length Number of Flutes
COATED UNCOATED D1 D2 L1 L2 Z
G9H92008N E5H92008 1/8 1/8 3/4 2_1/4 4
G9H92010N E5H92010 5/32 3/16 3/4 2_1/2 4
G9H92012N E5H92012 3/16 3/16 3/4 2_1/2 4
G9H92016N E5H92016 1/4 1/4 1_1/8 3" 4
G9H92020N E5H92020 5/16 5/16 1_1/8 3" 4
G9H92024N E5H92024 3/8 3/8 1_1/8 3" 4
G9H92028N E5H92028 7/16 7/16 2" 4" 4
G9H92032N E5H92032 1/2 1/2 1" 4" 4
G9H92901N E5H92901 1/2 1/2 1_1/2 4" 4
G9H92902N E5H92902 1/2 1/2 2" 4" 4
G9H92040N E5H92040 5/8 5/8 2_1/4 5" 4
G9H92048N E5H92048 3/4 3/4 2_1/4 5" 4
G9H92064N E5H92064 1" 1" 2_1/4 5" 4
